AAEON PICO-ASL4 Industrial SBC is Built Around Intel Atom x7000RE SoC and Comes in a Pico-ITX form factor

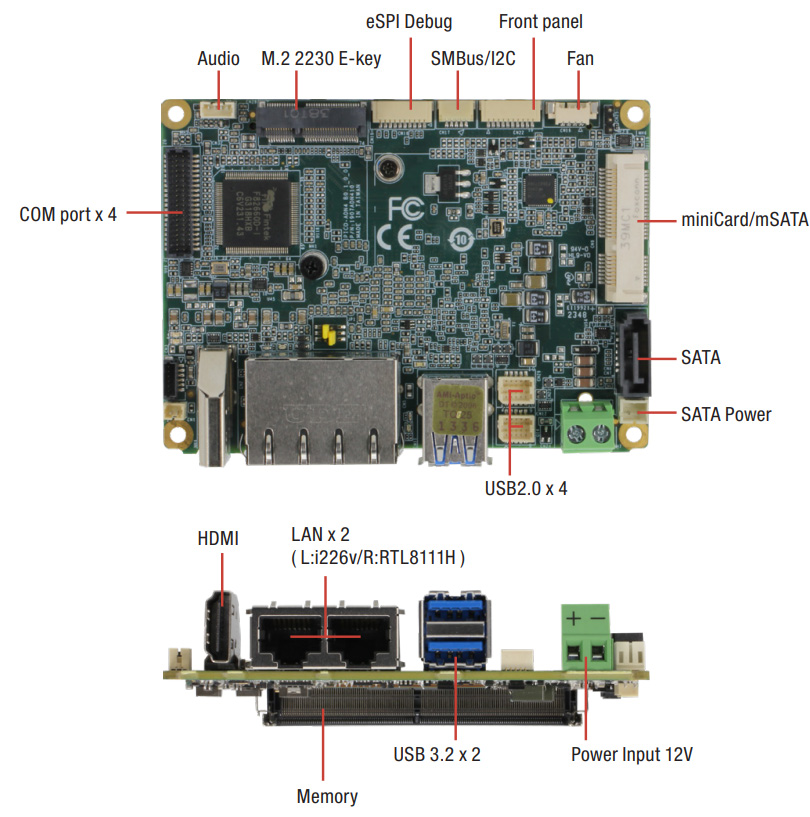

AAEON has recently released PICO-ASL4 Industrial SBC built around Intel Atom x7000RE-series Amston Lake SoCs. The SBC is designed for latency-sensitive applications and features a fanless design for applications with limited space and airflow.

The SBC also features dual Ethernet connectivity with Intel i226 2.5GbE and Realtek RTL8111H 1GbE controllers with TSN and TCN. HDMI, and LVDS/eDP for video output, M.2 2230 E-Key, mSATA/mPCIe for storage and connectivity. Two USB 3.2 Gen 2 ports, as well as GPIO and SMBus/I2C headers and many other connectivity options.

Previously we have written about various Pico ITX-SBC including the  AAEON’s SRG-IMX8PL and PICO-IMX8PL, the AAEON RICO-3568, the AAEON PICO-RAP4 and much more feel free to check those out if you are interested in the topic.

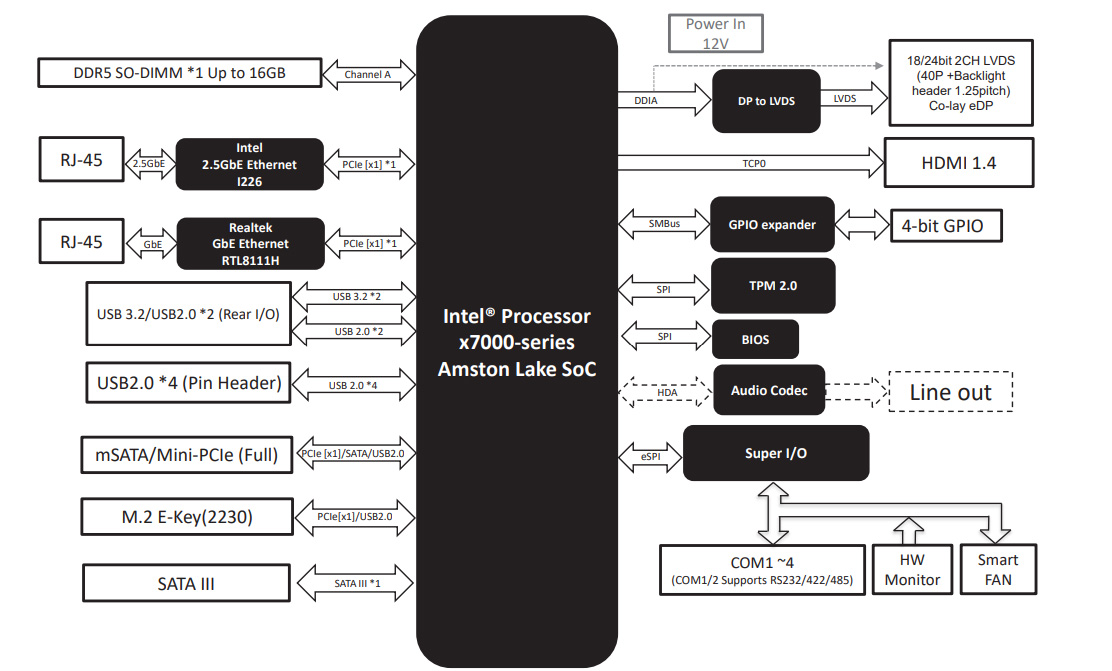

PICO-ASL4 Industrial SBC Specifications

• CPU:
  • Intel Atom® x7000E Series
    • x7433RE (4 cores, 1.5 GHz, 9W TDP)
    • x7835RE (8 cores, 1.3 GHz, 12W TDP)
• Chipset: Integrated with Intel SoC
• Memory: 1x DDR5 SODIMM slot, up to 16GB, 4800 MT/s, non-ECC
• Storage
  • 1x SATA 6.0 Gbps port with +5V power connector
  • 1x Full-size mSATA/mPCIe slot (mSATA by default, configurable in BIOS)
• Display & Graphics
  • Graphics: Intel UHD Graphics for 12th Gen Intel Processors
  • Display Outputs:
  • 1x HDMI 1.4 (up to 3840 x 2160 @ 30Hz)
  • 1x LVDS (18/24-bit, 2-channel, up to 1920 x 1200 @ 60Hz) or eDP 1.4 (up to 3840 x 2160 @ 60Hz) – optional
• Multiple Displays: Support for up to 2 simultaneous displays
• Networking
  • Ethernet:
    • 1x Intel i226 2.5GbE (RJ-45)
    • 1x Realtek RTL8111H-CG 1GbE (RJ-45)
• I/O Interfaces
  • External:
    • 2x USB 3.2 Gen 2 (x1) ports
  • Internal:
    • 4x USB 2.0 ports
    • 2x RS232/422/485 serial ports (COM1/2, supports 5V/12V/RI)
    • 2x RS232 serial ports (COM3/4)
• Expansion
  • 1x M.2 2230 E-key slot (for Wi-Fi/Bluetooth, etc.)
  • 1x Mini PCIe/mSATA slot (shared with mSATA)
• Other Features
  • Audio: Realtek ALC256 codec, line-out header (optional, not available for WiTAS SKU)
  • GPIO: 4-bit GPIO
  • SMBus/I2C: 1x (SMBus by default)
  • Watchdog Timer: 255 levels
  • Security: TPM 2.0
  • RTC Battery: Lithium battery (3V/240mAh)
• Physical Specifications
  • Form Factor: PICO-ITX (100mm x 72mm)
  • Weight: 0.08 kg (0.18 lbs)
• Power
  • Power Input:
    • +12V (default, via terminal block)
    • Optional: +9V to +36V with adapter card
  • Power Connectors:
    • Phoenix 2-pin connector (default)
    • Lockable DC jack connector (optional)
  • Power Consumption:
    • Typical: 3.06A @ +12V (with x7835RE and 16GB RAM)
    • Max: 4.21A @ +12V (with x7835RE and 16GB RAM)
• Environmental
  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
  • Storage Temperature: -40°C to 85°C (-40°F to 185°F)
  • Operating Humidity: 0% to 90% relative humidity, non-condensing
• Certifications
  • CE/FCC Class A

In terms of software, the company mentions that the board supports Windows 10 (64-bit) and Ubuntu 22.04.2 with Kernel 5.19 for Windows i can see drivers available on the download section of the product page along with a datasheet and a user manual.

The PICO-ASL4 Industrial SBC features two main variants, the first one is with an Atom x7433RE (4 cores, 1.5 GHz) which is priced at $333.00. The top-end model with the Atom x7835RE (8 cores, 1.3 GHz) sells for $488.00.  Samples of both boards can be purchased through AAEON’s online store.
