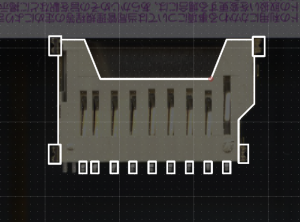

Creating footprints in KiCad using a scanner

Jan @ jasiek.me decided to use a flatbed scanner to trace out a footprint in KiCad. [via] Some time ago I sourced a number of very cheap SD card sockets from China for a hobby project I was working on. Sadly, when it came to PCB design, I couldn't find the footprints for this particular socket ... Read More
