DFI RPS101/RPS103 Mini-ITX Motherboard with Intel Core and R680E/Q670E/H610E Chipsets for Automation and Kiosk Applications

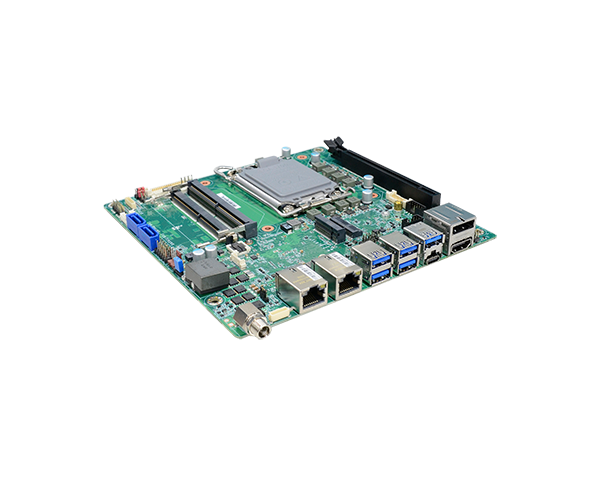

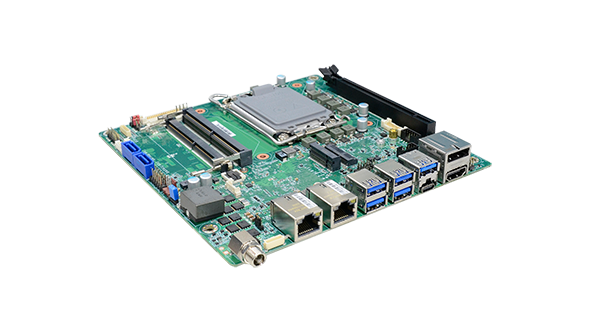

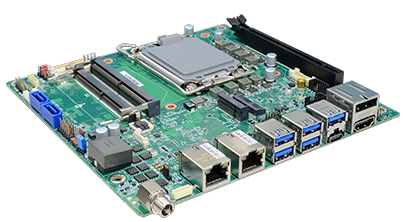

The DFI RPS101/RPS103 is a Mini-ITX industrial motherboard designed specifically for automation and kiosk applications. It supports Intel Core processors from the 12th to the 14th generation, making it suitable for real-time processing in industrial environments. With a compact form factor, the motherboard still allows high performance, supporting up to 64GB of DDR5 memory at 5600MHz, which is essential for handling data-intensive tasks in smart factories.

For scalability, the RPS101/RPS103 includes a PCIe x16 Gen 5 slot, enabling users to add AI processing units or other specialized industrial modules without changing the motherboard. This feature, along with its robust processing capabilities, makes the RPS101/RPS103 a versatile choice for factory automation and other industrial applications that require reliable, high-speed computing.

We’ve previously covered various Mini-ITX motherboards, including the Turing Pi 2.5, MI1001, ASUS N97T-IM-A, MI1002, and ASRock IMB-A8000. Feel free to explore those articles if you’re interested in similar products.

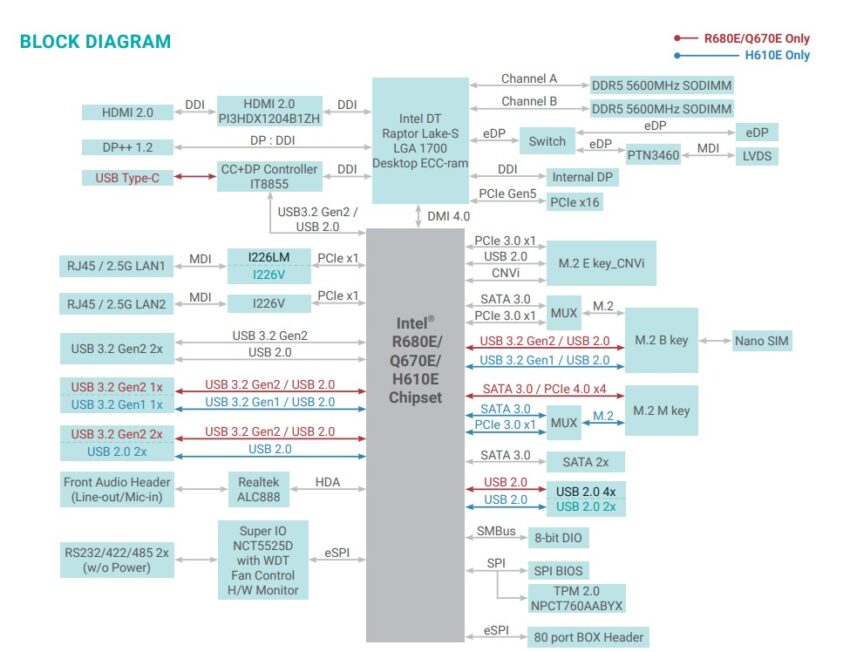

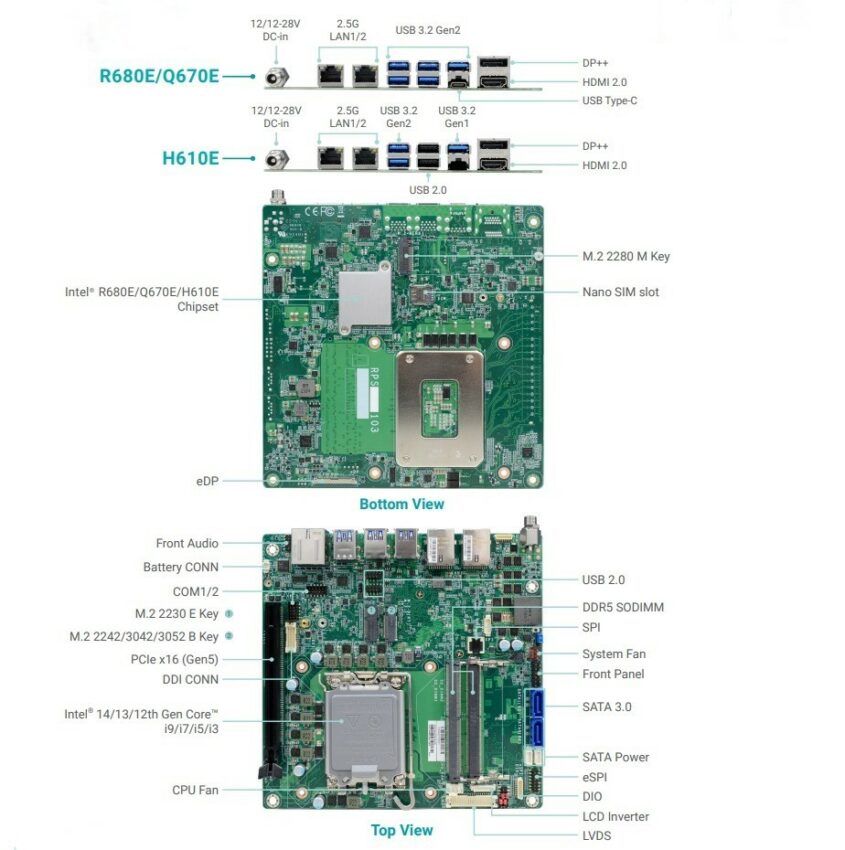

The DFI RPS101/RPS103 mini-ITX motherboard specifications:

• Processor:
  • 14th Generation Intel LGA 1700 Socket Processors, TDP support up to 65W
  • 13th Generation Intel LGA 1700 Socket Processors, TDP support up to 65W
  • 12th Generation Intel LGA 1700 Socket Processors, TDP support up to 65W
• GPU:
  • Intel UHD Graphics 700 series (3D graphics HW acceleration:DX12, Open GL 4.6, Vulkan 1.2)
  • Hardware Decode – HEVC/H.265, AVC/H.264, VP9, VP8, JPEG/MJPEG
  • Hardware Encode – HEVC/H.265, AVC/H.264, JPEG, VP9, VP8
• Chipset: Intel R680E/Q670E/H610E
• Memory:
  • Two 262-pin SODIMM up to 64GB
  • Dual Channel DDR5 5600 MHz
• BIOS: AMI SPI 256Mbit
• Storage:
  • 2x SATA 3.0, up to 6Gb/s
  • 1x M.2 2242/3042/3052 B-Key
    • R680E/Q670E: PCIe 3.0 x1, SATA 3.0 x1, USB 3.2 Gen 2 x1, USB 2.0 x1
    • H610E: PCIe 3.0 x1, SATA 3.0 x1, USB 3.2 Gen 1 x1, USB 2.0 x1
    • 1x M.2 2280 M-Key
      • R680E/Q670E: PCIe 4.0 x4 or SATA 3.0 x1
      • H610E: PCIe 3.0 x1 or SATA 3.0 x1
    • Additional Slots (R680E/Q670E)
      • M.2 2230 E-Key: USB 2.0 x1, CNVio, PCIe 3.0 x1
• Video Output:
  • Quad Display Support
    • HDMI 2.0: 4096×2160 @ 60Hz
    • DP++ 1.2: 4096×2160 @ 60Hz
    • USB Type-C (H610E not supported): 4096×2304 @ 60Hz
    • eDP: 4096×2160 @ 60Hz
    • LVDS: 1920×1200 @ 60Hz
  • DFI Display Extension Port
• Audio:
  • Realtek ALC888 High-Definition Audio (Line-out jack, Mic-in jack)
• Networking: 2x 2.5GbE (RJ-45) connectors
  • 1x Intel I226-LM (supports iAMT with Core i9/i7/i5)
  • 1x Intel I226-V or 2x Intel I226-V (H610E chipset only)
• USB:
  • Rear I/O
    • R680E/Q670E Chipsets
      • 5x USB 3.2 Gen 2 Type-A
      • 1x USB 3.2 Gen 2 Type-C
    • H610E Chipset
      • 2x USB 3.2 Gen 2
      • 1x USB 3.2 Gen 1
      • 2x USB 2.0
  • Internal I/O
    • R680E/Q670E Chipsets
      • 4x USB 2.0 (via 2×5 2.0mm pitch headers)
    • H610E Chipset
      • 2x USB 2.0 (via 1×5 2.0mm pitch header)
• Serial: 2x RS-232/422/485 ports (via box headers, 2.0mm pitch)
• Security: Nuvoton TPM 2.0
• Expansion:
  • PCIe x16 Gen5 slot
  • 8-bit DIO (Digital Input/Output)
  • SMBus
• Misc:
  • System Reset
  • RTC (Real-Time Clock)
• Power supply
  • 12V +/-10% via DC Jack for RPS101
  • Wide Range 12~28V via DC jack for RPS103
  • DC-in connector right angle and straight available upon request
• Dimensions: 170 x 170 mm (Mini-ITX form factor)
• Temperature Range:
  • Operating: -5°C to 65°C
  • Storage: -40°C to 85°C
• Humidity:
  • Operating: 5% to 90% RH
  • Storage: 5% to 90% RH
• Certificate: CE, FCC Class B, RoHS

The RPS101/RPS103 Mini-ITX motherboard offers robust connectivity, supporting up to four independent 4K displays—ideal for detailed factory monitoring and interactive kiosk applications. Its extensive I/O options facilitate smooth integration with sensors, controllers, and peripherals, enhancing industrial workflows. Key features include dual Intel 2.5GbE ports, six USB 3.2 Gen 2 ports, two COM ports, and two SATA 3.0 connectors, enabling efficient data collection, streamlined operations, and adaptable self-service solutions suited for both industrial settings and kiosk deployments.

The RPS101/RPS103 Mini-ITX motherboard supports Windows 10 IoT Enterprise 64-bit, Windows 11 Enterprise, and Linux. Pricing information for the RPS101/RPS103 motherboards is currently unavailable; for quotes, interested parties should contact the company directly. Further details, including a complete list of compatible CPUs, can be found on the product page and in the press release.
