DipDuino – An Arduino clone made for breadboarding

7 September, 2020

2.475

Views0 Comments

DipDuino is an Arduino clone that’s really small, even simpler to use, and designed for clean use with breadboards. It solves the problem of needing to jump wires from an external board to a breadboard, as well as the need to fit a PCB in a tight spot. Having the entire Arduino on a breadboard (including programmer) allows for easier transport and less chance of something being pulled off. Being so small allows it to fit inside a range of enclosures and odd places.

Just like the Arduino Pro Mini, you get access to all the pins possible; but DipDuino is presented in an easier-to-use package and with a built-in programmer. Not only is the package smaller, but the castellated holes allow you to use it a surface mount type of PCB as well.

Features & Specs

Processing:
- Microchip ATmega328P
- 8-bit AVR processor operating at 8 MHz (3.3 V) or 16 MHz (5 V)
- 32 KB flash, of which 2 KB is used by bootloader
- 2 KB SRAM
- 1 KB EEPROM
Power:
- Available in 5 V or 3.3 V versions
- 5 V provided by USB
- 600 mA 3.3 V LDO regulator on 3.3 V version
- RGB LED – power is GREEN
USB:
- USB Micro Type-B connector
- CP2102N for USB-to-UART bridge
- RGB LED – Tx (BLUE) & Rx (RED)
Form-factor:
- Breadboard-friendly
- Small size: 9.7 x 48.8 mm (0.38 x 1.92 in)
Connectivity:
- 1x SPI, 1x I²C, 1x UART, 6x PWM, 8x ANALOG, 2x EINT

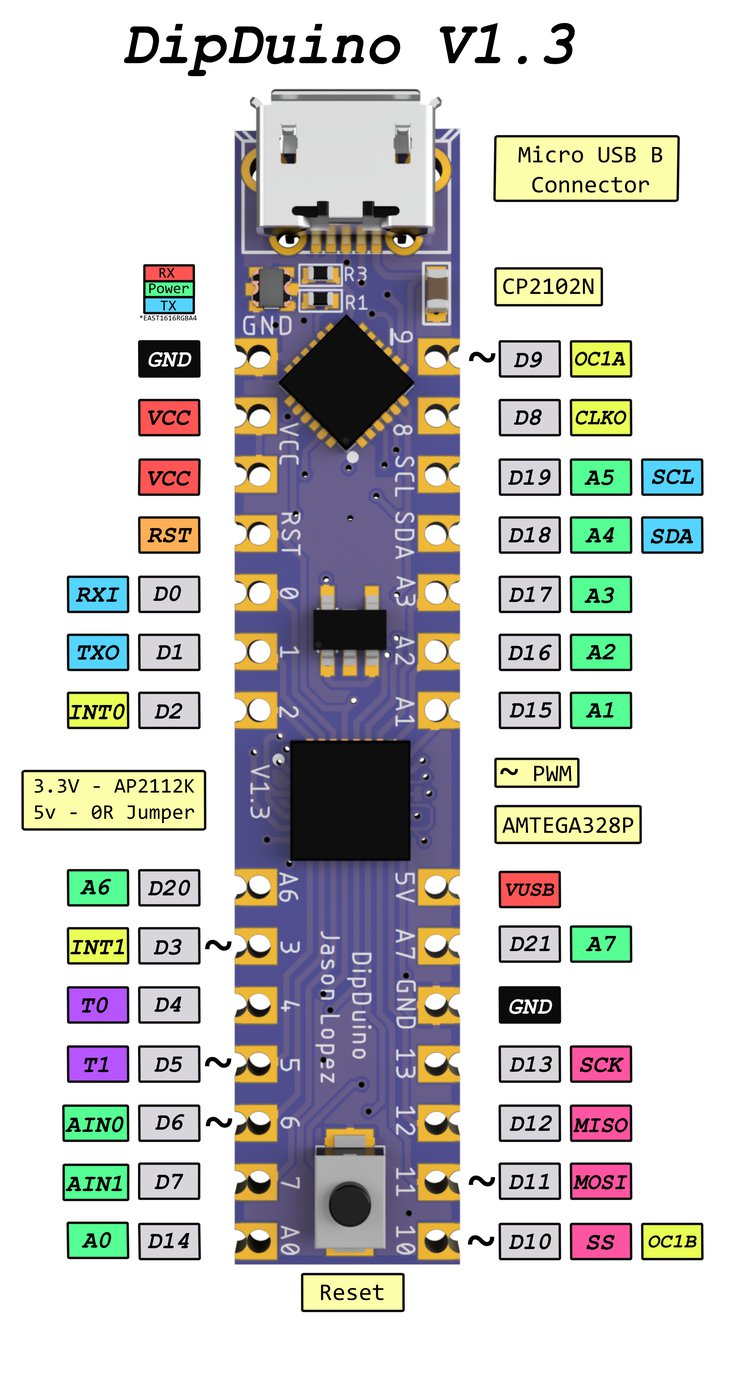

- 21 GPIO broken out to standard breadboard-pitch holes as well as castellated holes for surface-mounting
- USB for programming and USB-to-UART applications
- EAST1616RGBA4 RGB LED for power/UART
Supports Arduino IDE:
- Board set as Arduino Pro or Pro Mini

Programmable by PC/Mac/Linux Machines

DipDuino is as thin as a 0.3 in DIP chip (hence the name). It is super thin – which leaves all extra rows free and open for use. The board can also be surface mount soldered to a PCB. The USB-to-UART on board allows it to be programmed and communicate with PC/Mac & Linux machines, including Android devices.

more information: www.crowdsupply.com
