EDATEC ED-AIC3100: 12MP Industrial Smart Camera with Raspberry Pi CM5 and Broadcom BCM2712 SoC

EDATEC has introduced the ED-AIC3100, a 12MP industrial smart camera based on the Raspberry Pi CM5. It features a Broadcom BCM2712 quad-core Cortex-A78 (ARM v8) 64-bit SoC running at 2.4GHz. The device supports up to 8GB LPDDR4 RAM and 64GB eMMC storage, with configurable options including 2GB, 4GB, 8GB, and 16GB RAM, along with 16GB, 32GB, and 64GB eMMC.

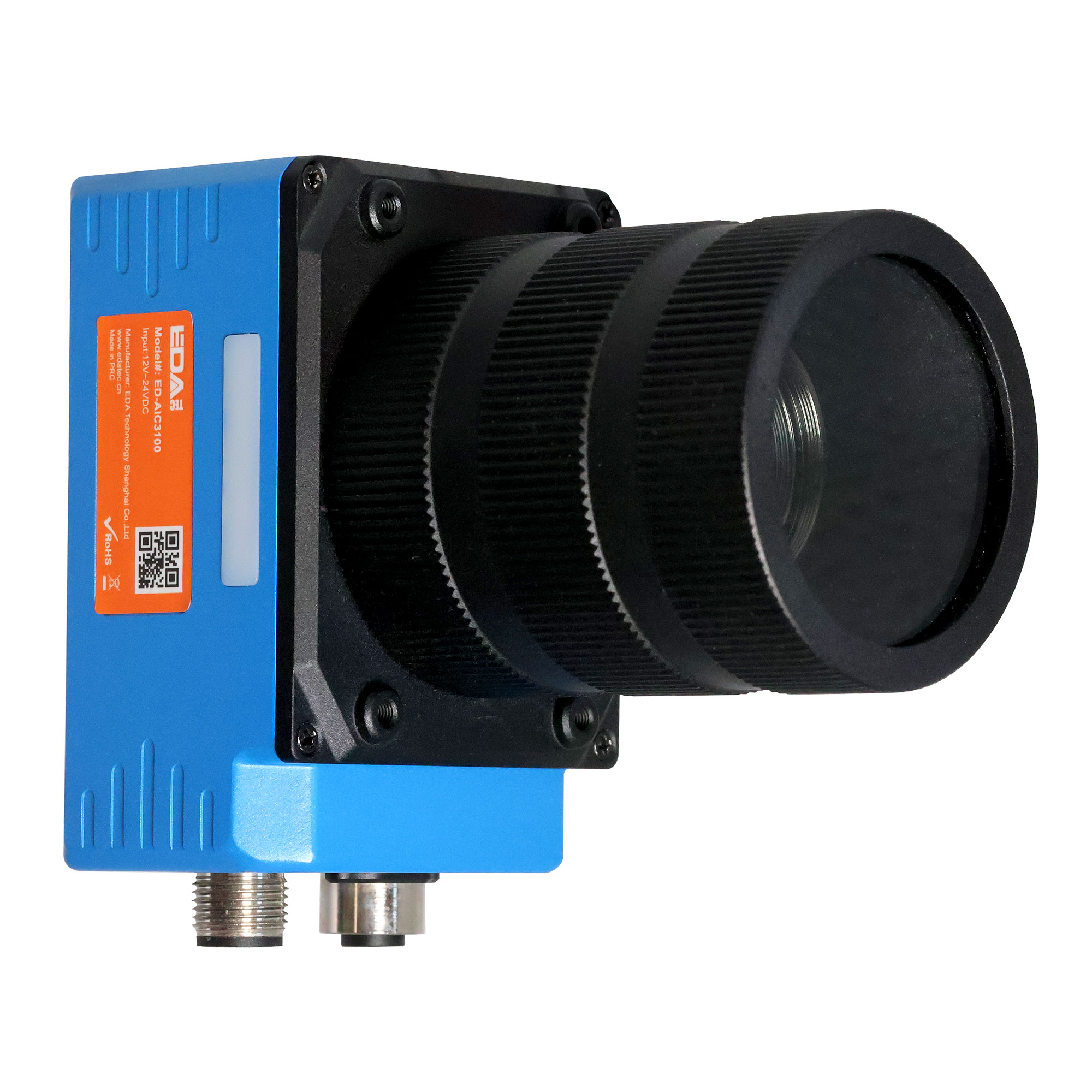

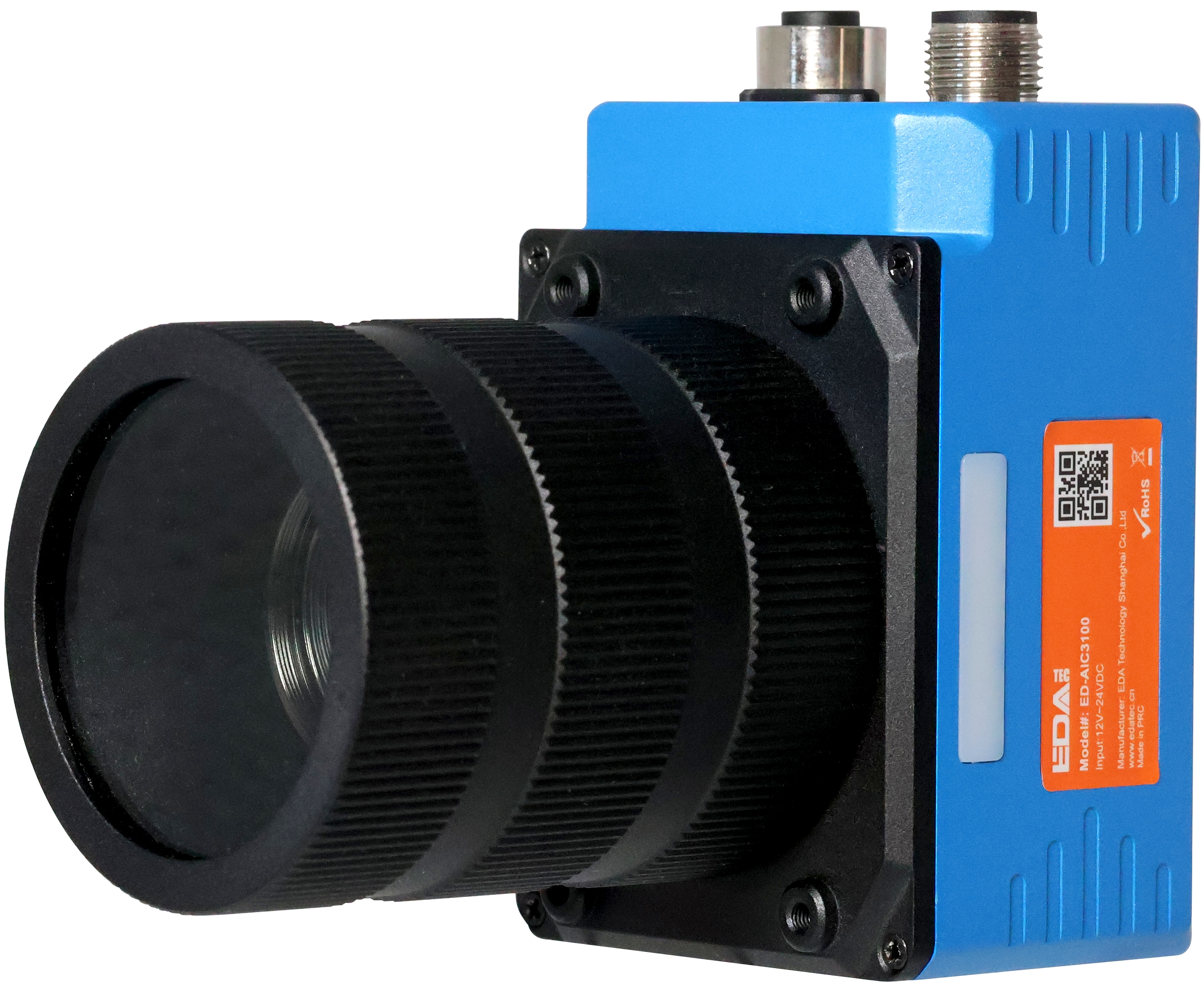

The smart camera supports a sampling rate of up to 70 FPS for high-speed image acquisition. It includes an M12 fixed focal length lens with liquid module zoom and bright field/dark field modes for improved imaging on various surfaces. The device also supports C-Mount lenses and is housed in an industrial-grade blue aluminum alloy case with bracket mounting support.

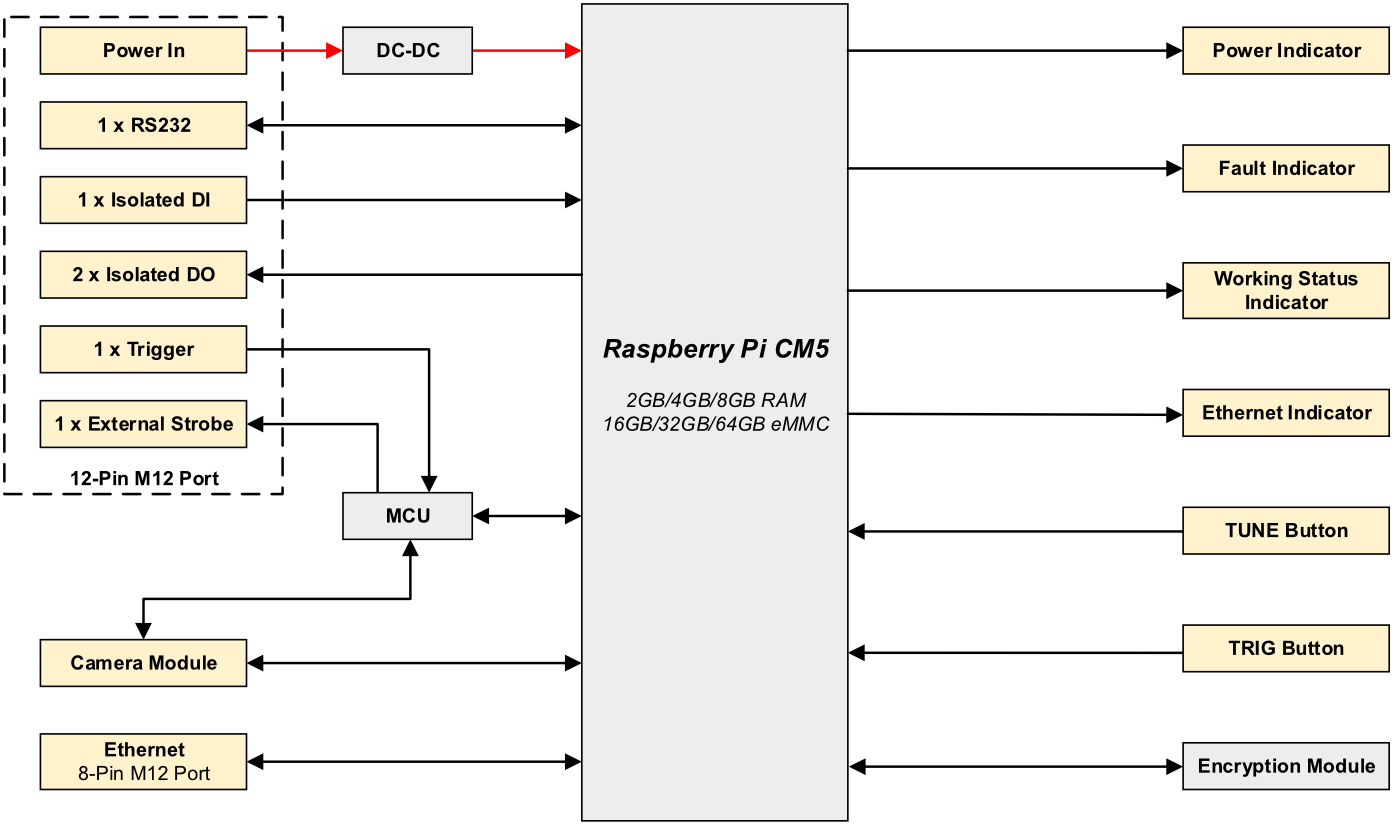

EDATEC ED-AIC3100 specifications:

• SoM: Raspberry Pi CM5
• SoC: Broadcom BCM2712
  • CPU: Quad-core Cortex-A78 (ARM v8) 64-bit SoC @ 2.4GHz
  • GPU: VideoCore VII GPU with support for OpenGL ES 3.1 graphics, Vulkan 1.2
  • VPU: H.265 (HEVC), up to 4Kp60 decoder
  • System Memory: 2GB, 4GB, 8GB, or 16GB LPDDR4-4267 SDRAM with ECC
  • Storage: 16GB, 32GB or 64GB eMMC flash
• Storage: 16GB, 32GB or 64GB eMMC flash
• Video Output/Input
  • 2x HDMI 2.0 ports up to 4Kp60
  • 2x 4-lane MIPI ports supporting both DSI (display port) and CSI-2 (camera port)
• Camera: 12-MP CMOS image sensor supporting C-Mount lenses having a sampling rate of up to 70 FPS
• Communication Protocol: Ethernet/IP, Modbus TCP, TCP/IP and MC
• Expansion:
  • 2-Pin Power & IO port which includes 12-Pin M12 aviation connector to access RS232 (1x 3-pin RS232), DI (1x 2-pin DO) and DO (2x 3-pin DO)
  • 8-Pin Communication port, including 8-Pin M12 aviation connector to RJ45 connector to enable the camera to access the network
• Misc:
  • 1x Adjusting Auto Focus TUNE button
  • 1x Trigger button (TRIG)
  • 1x Power indicator
  • 1x Fault indicator
  • 1x Working status indicator
  • 2x Network indicators
  • 1x External Strobe to control the signal of screen flicker
• Power Supply:
  • DC 24V Input Voltage (±10%)
  • 36W (Max Power Consumption)
• Operating Temperature: 0°C ~ 45°C
• Storage Temperature: -4°C ~ 60°C
• Ambient Humidity: 5% ~ 90% (non-condensing)
• Protection Degree: IP65 waterproof rating
• Shock Resistance: EN 60068-2-27, 30 g; 11ms; 3 impacts per axial direction
• Vibration Resistance: EN 60068-2-6, 14 mm @ 2 ~ 10 Hz, 1.5mm @ 13 ~ 55 Hz | 2 g @ 70 ~ 500 Hz, 2-way 2 hours per axial direction
• Installation – Mounting bracket (optional)
• Weight: About 400g
• Dimensions: 85mm x 60mm x 108.9mm

The product comes with a packaging list that includes one ED-AIC3100 unit. Optional accessories such as cables of different lengths and mounting accessories are also available.

In terms of software, the ED-AIC3100 smart camera runs on Raspberry Pi OS (Desktop) 64-bit and supports communication protocols such as Ethernet/IP, Modbus TCP, TCP/IP, and MC.

Previously, we covered the NEON-2000-JNX Series, an industrial AI smart camera based on NVIDIA Jetson Xavier NX for edge applications. We also wrote about the Vision Cam XM2 and SENSAiZ SZP123S-001 smart cameras. Feel free to check them out if you’re interested in similar products.

As of now, EDATEC has not mentioned the price and availability of the ED-AIC3100 industrial smart camera. Additional information may be found on the product page and documentation page as well.
