Enclustra recently introduced two modules, Andromeda XZU90 SoM and Mercury+ XU6, capable of running Linux. Today’s focus will be on the Mercury+ XU6 that is built around the Xilinx Zynq UltraScale+ MPSoC that is an ultra-compact package with integrated H.264 / H.265 video codec. The hardware Mercury+ XU6 system on module comes into the light with only measuring 65 x 54mm supporting UltraScale+ models with up to 256K logic cells.

As mentioned earlier, the Mercury+ XU6 system on module is powered by the Xilinx Zynq Ultrascale+ MPSoC that features ARM dual-/quad-core Cortex-A53 clocked up to 1333 MHz and ARM dual-core Cortex-R5 running at a clock speed of 533 MHz. The system on module is integrated with up to 8GB DDR4 ECC SDRAM, 16GB eMMC flash, and 64MB QSPI flash storage.

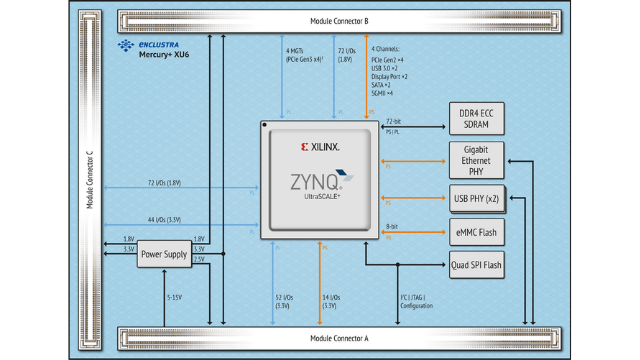

BLOCK DIAGRAM

Features of Mercury+ XU6 System on Module:

  • CPU: Xilinx’s Zynq Ultrascale+ MPSoC with ARM dual-/quad-core Cortex-A53 (64 bit, up to 1333 MHz) ARM dual-core Cortex-R5 (32 bit, up to 533 MHz)
  • GPU: Mali-400MP2
  • RAM: 8 GB DDR4 ECC SDRAM
  • Flash memory: 16 GB eMMC flash, 64 MB QSPI flash
  • Interfaces: PCIe Gen3 x4, PCIe Gen2 x4, 2x USB 3.0 and Gigabit Ethernet interfaces
  • Dimension: 65 × 54 mm
  • Power supply: 5–15 V supply
Mercury+ PE1 Baseboard

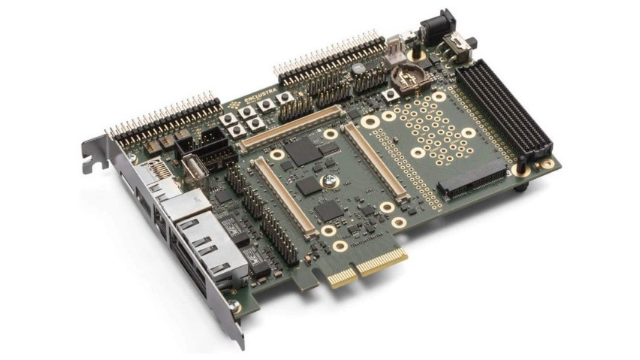

Mercury+ PE1 Baseboard

When we talk about any system on module, it requires a carrier board where it can be plugged or soldered. The manufacturer comes with two baseboards that support Mercury+ modules. The first Mercury+ PE1 has IO interfaces for almost every application and has three variants for building custom FPGA and SoC-based hardware.

The Mercury+ ST1 carrier board is designed for rapid prototyping and for building FPGA systems. For those looking to buy the Mercury+ XU6 module for the video codec and implement it in a video-based application, this Mercury+ ST1 baseboard is well suited for such applications due to its wide range of I/O interfaces.

Mercury+ ST1 Carrier Board
Mercury+ ST1 Carrier Board

Enclustra also unveiled the Andromeda XZU90 SoM, but it is still under development and is designed for high-end applications. For a single unit, the Mercury+ XU6 is priced in the range of $299.00 to $1134.00, depending on the variant. More details on the hardware specifications are available on the official product page.
