Free Elektor Article: Compact USB to Serial Converter

9 December, 2019

3.132

Views0 Comments

The “legacy” serial port is still used a lot for interfaces between electronic devices and PCs. Here we present a compact implementation, based on the FT232H IC from FTDI, which can be connected over USB 2.0 after you install the right drivers. That gives you USB High Speed capability.

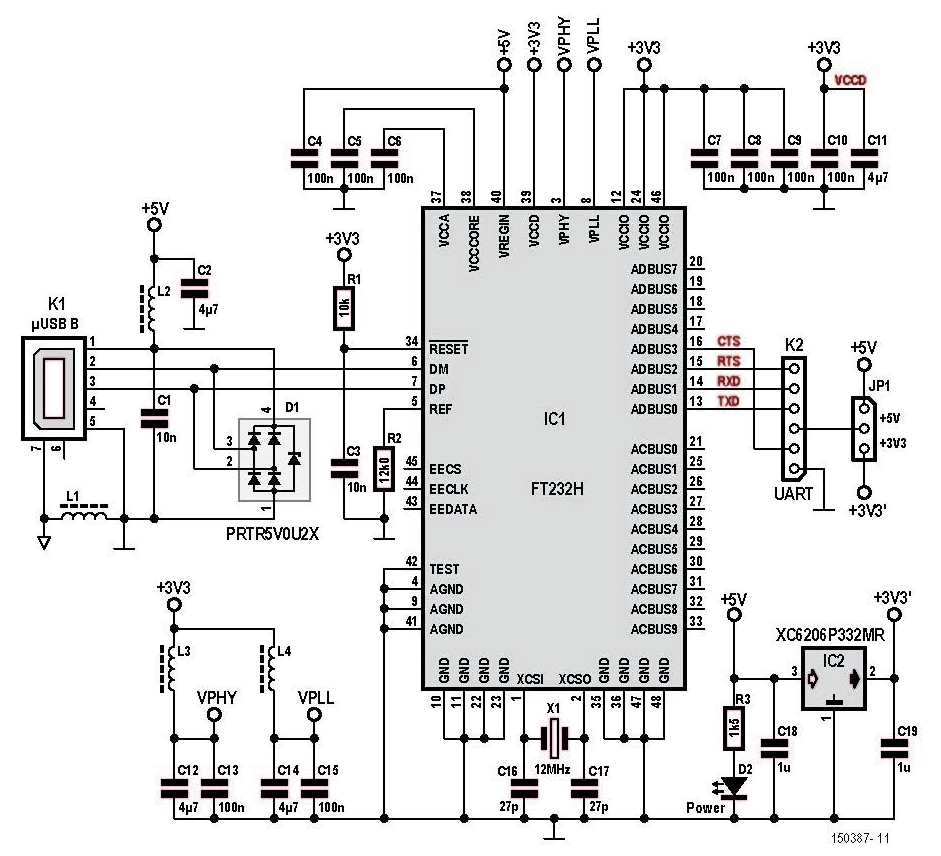

Schematic

Quick Features of the Project

USB 2.0 High Speed
Pin compatible with the FTDI-USB-TTL (UART) cable
Right-angle USB connector for space-saving mounting
Selectable 3.3 V or 5 V supply voltage on the output connector
Automatically recognized as a COM port (after installation of VCP drivers

Like what you’re seeing? The go to the article page and download a pdf copy of the full, original article. Downloading is free between Friday 6 December and Friday 13 December, 2019.

Original publication: Elektor Magazine no. 11/2015 on page 45.
Authors: Ton Giesberts (Elektor Labs) and Thijs Beckers (Netherlands Editorial)
