Infineon PSOC Control C3 MCUs with Arm Cortex-M33 for Motor Control and Power Conversion

Infineon Technologies AG has introduced the PSOC Control C3 series microcontrollers (MCUs), based on the Arm Cortex-M33 core, for motor control and power conversion applications. Supported by the ModusToolbox software environment, these MCUs offer a scalable range of performance, features, and memory options. The series includes Entry Line (C3P2, C3M2) and Main Line (C3P5, C3M5) devices, providing flexibility for various system requirements.

The Entry Line MCUs feature high-resolution and high-precision A/D converters and timers, while the Main Line variants add high-resolution Pulse Width Modulation (HRPWM) for precise motor and power control. With real-time event response and integrated memory, these MCUs optimize system efficiency while supporting multiple communication interfaces for broader application compatibility.

All PSOC Control C3 MCUs are designed for executing power and motor control loops, with the Main Line models offering higher switching frequencies and compatibility with Wide Bandgap (WBG) power systems. Their low-latency architecture and efficient resource utilization make them well-suited for high-performance motor drive and power conversion applications.

Infineon PSOC Control C3 microcontrollers specifications:

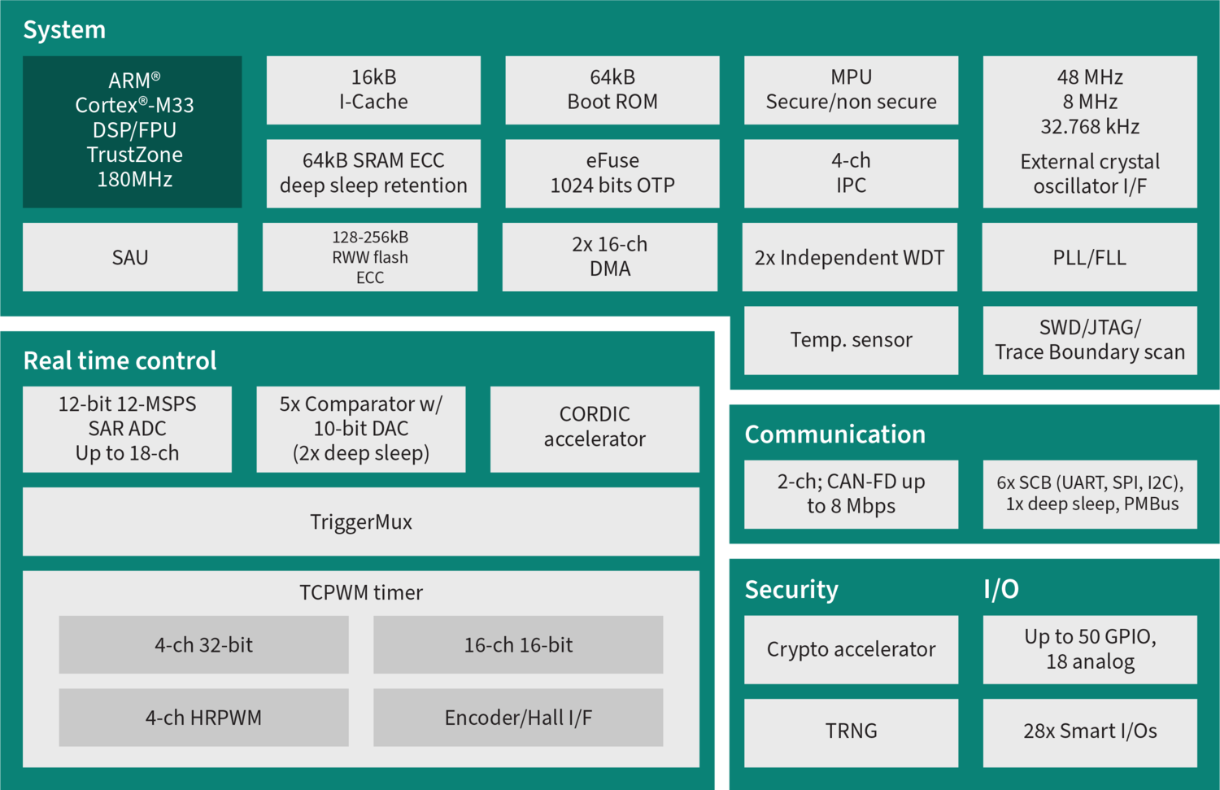

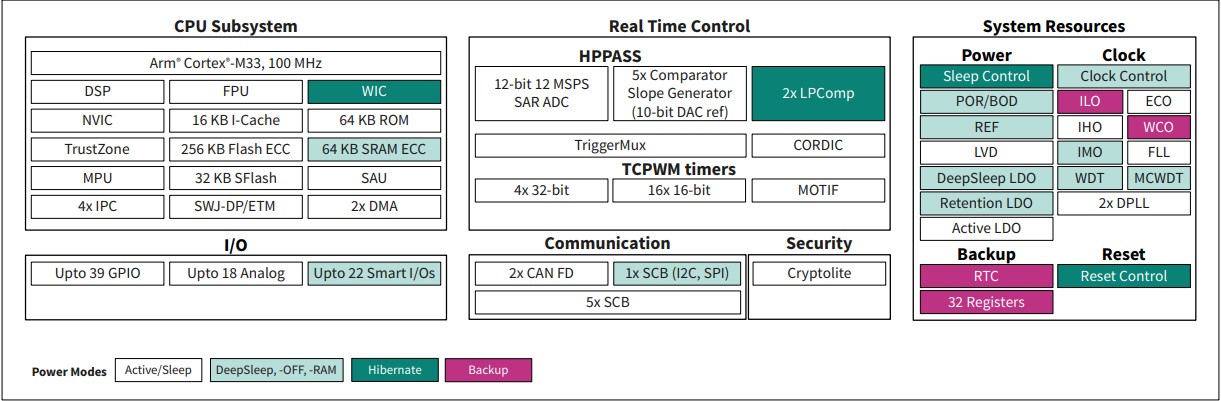

• MCU: ARM Cortex-M33 with DSP and FPU, Entry Line MCUs (C3P2 and C3M2) @100 MHz, Main Line MCUs (C3P5 and C3M5) @180 MHz
• Memory & Storage:
  • SRAM: 64KB with deep sleep retention and ECC
  • Flash: 128KB–256KB read-while-write flash with ECC support
  • Boot ROM: 64KB
• Peripherals and Interfaces:
  • 6x SCBs (UART, SPI, I²C) with deep sleep and PMBus support
  • 16x 16-bit and 4x 32-bit TCPWM (Timer/Counter Pulse-Width Modulator)
  • 2x CAN-FD channels (up to 8 Mbps)
  • GPIO:
    • Entry Line: Up to 39 GPIOs, 18 analog channels
    • Main Line: Up to 50 GPIOs, 18 analog channels
  • Smart I/Os: Entry Line (22), Main Line (28)
  • HRPWM (High-Resolution PWM): Main Line only (4 channels)
• Converters:
  • 12-bit SAR ADC (Up to 18 channels)
    • Entry Line: Up to 6 Msps
    • Main Line: Up to 12 Msps
  • 5x 10-bit comparators with integrated DACs (2 in deep sleep)
• Security:
  • Crypto accelerator with 4x 32-bit channels
  • True Random Number Generator (TRNG)
  • eFuse: 1024-bit OTP
  • Security PSA L2 compliant
• Additional Features:
  • CORDIC, MOTIF Hall/Encoder
  • Safety certifications: PSA L2, Safety Class B, SIL 2
  • Low-power modes: Sleep, Deep Sleep (three modes), Hibernate (down to 300 nA)
• Power and Environmental:
  • Supply voltage: 1.71V to 3.6V
  • Operating temperature: -40°C to 105°C
  • Peak reflow temperature: 260°C
• Packaging: VQFN-48, E-LQFP-48, VQFN-64, E-LQFP-64

The PSOC Control series is designed for applications such as HVAC, home appliances, robotics, telecom and server power supplies, light electric vehicle chargers, solar inverters, and industrial automation. To enhance security, these MCUs integrate hardware-based cryptography engines, secure boot, and memory protection units, ensuring the protection of sensitive data and firmware.

Developers can leverage ModusToolbox, a unified ecosystem platform that provides software solutions and development tools for PSOC Control applications. It includes the ModusToolbox Motor Suite and Power Conversion Configurator, which offer a graphical user interface and real-time debugging for faster and more efficient development.

Infineon provides three development kits to simplify the design process:

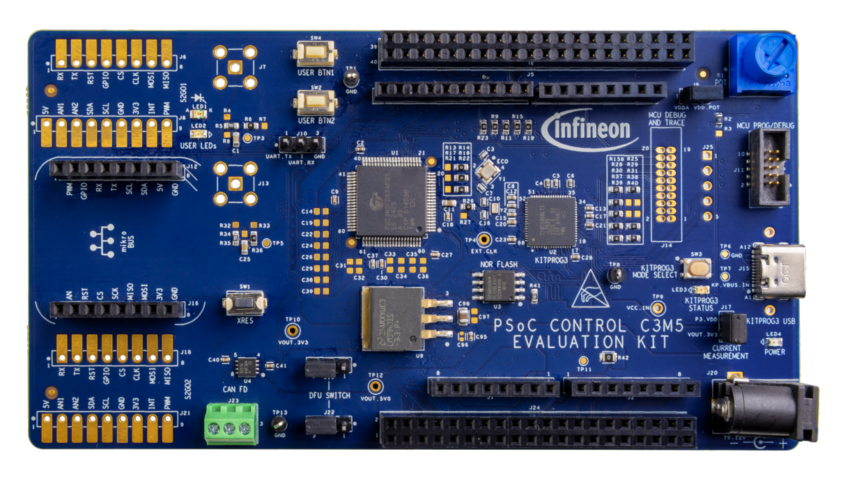

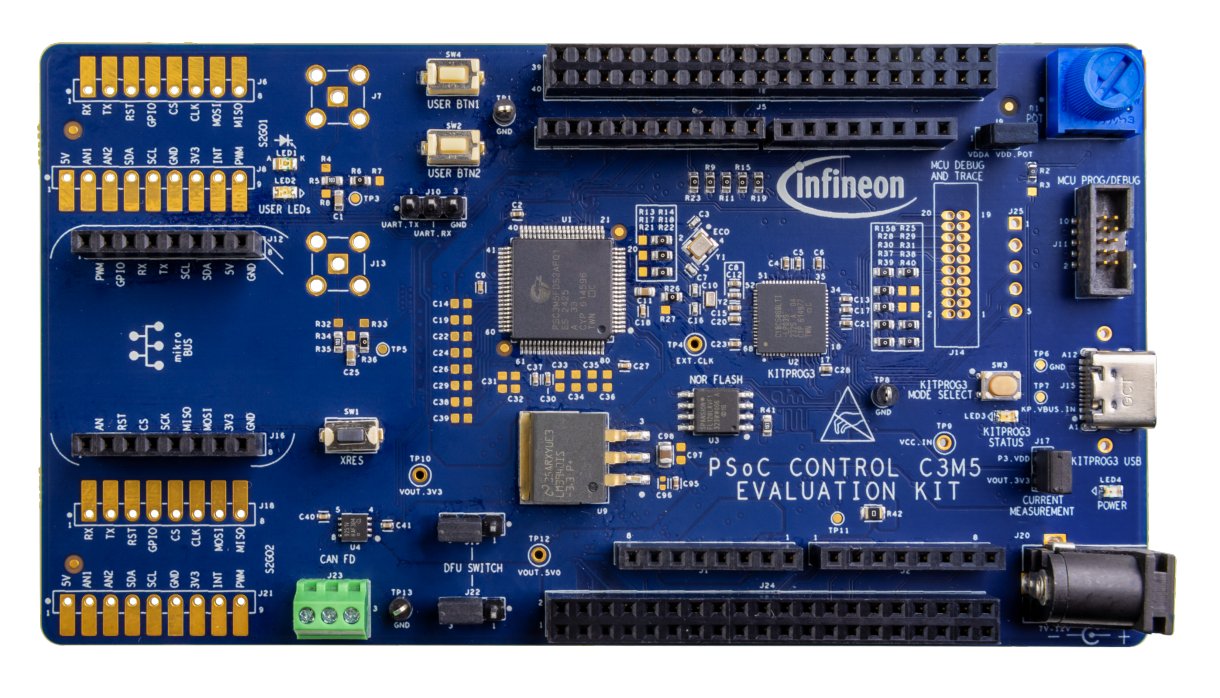

• KIT_PSC3M5_EVK: General-purpose evaluation kit
• KIT_PSC3M5_CC2: Motor control kit
• KIT_PSC3M5_CC1: Power conversion kit

The Infineon PSOC Control C3 microcontrollers are currently out of stock. For more details, visit the product page or refer to the press release.
