LILYGO’s Upgraded T-Display-S3 AMOLED for $25.68 USD

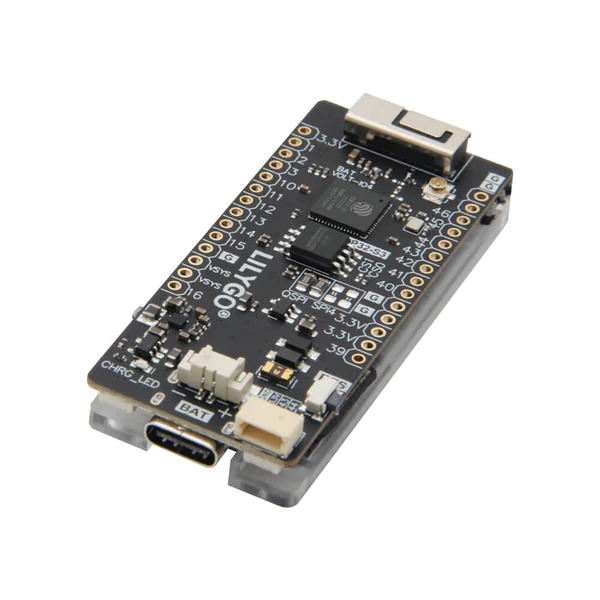

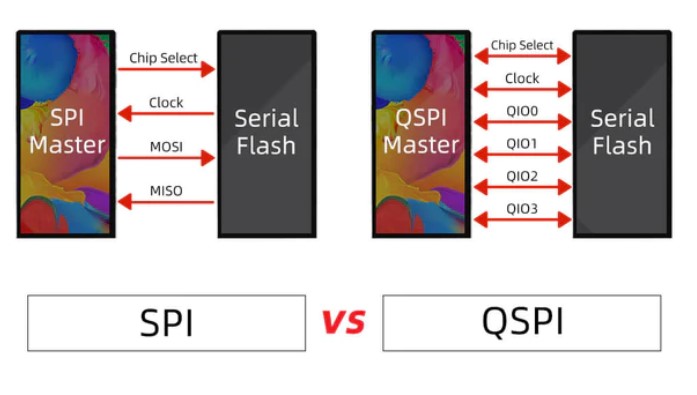

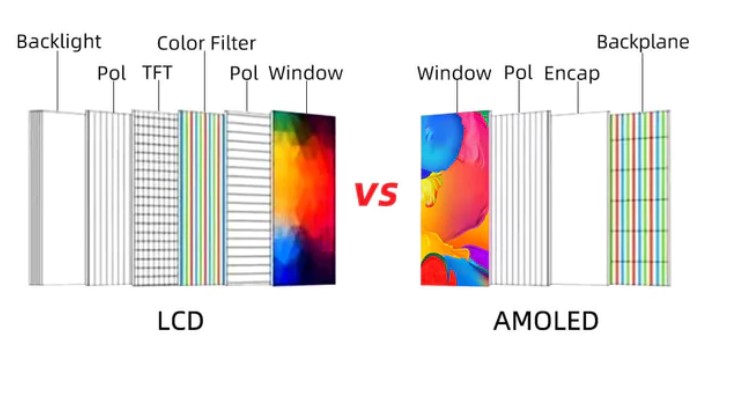

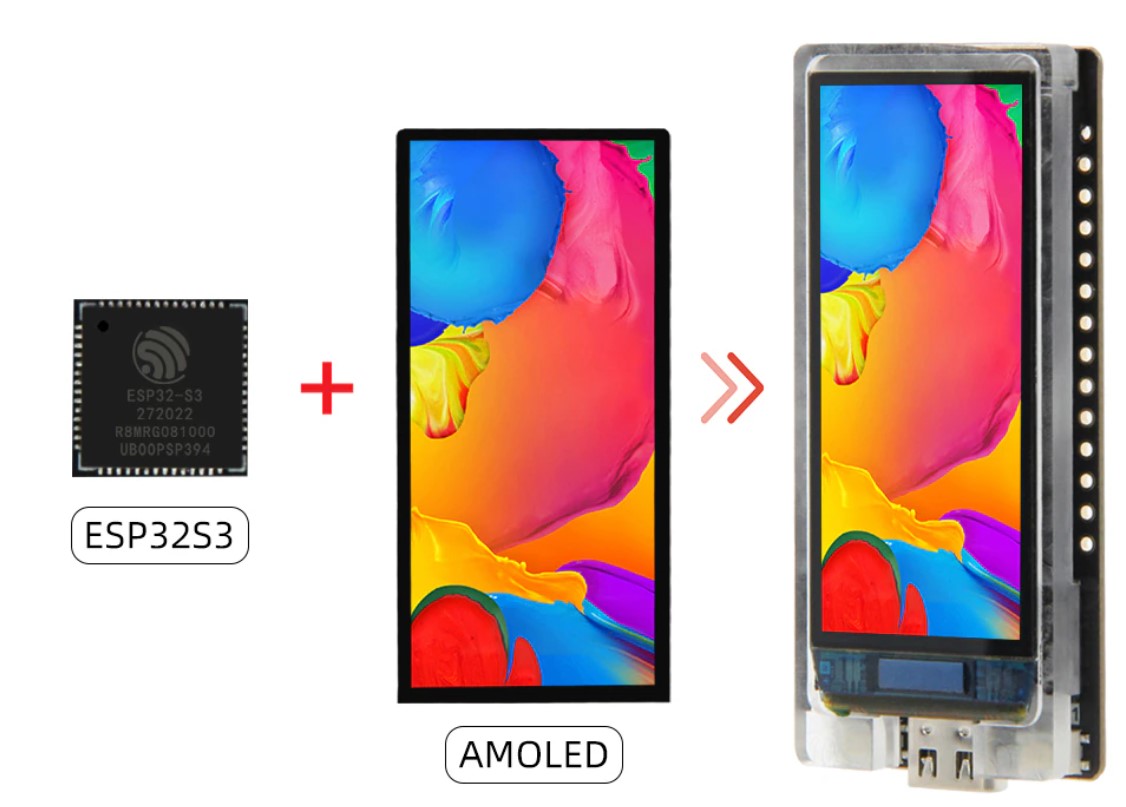

The T-Display-S3 AMOLED is a development board and is an updated version of the T-Display-S3 and has the first combination of an ESP32-S3 with an AMOLED display. The previous LCD display has been replaced with an AMOLED one, which results in an improved color display. In addition, it now features a QSPI interface instead of an SPI interface, which results in increased speed. The onboard antenna has been replaced with a 3D antenna, which results in an enhanced WiFi and Bluetooth experience.

Specification

• MCU- ESP32-S3R8 Dual-core LX7 microprocessor
• Flash size – 16MB
• PSRAM- 8MB
• Connectivity via ESP32-S3
  –2.4 GHz 802.11 b/g/n Wi-Fi 4 with 40 MHz bandwidth support
  -Bluetooth Low Energy (BLE) 5.0 connectivity with long-range support, up to 2Mbps data rate.
  – 3D antenna and external u.FL antenna support
• Display – 1.9-inch 536×240 AMOLED display
  -Resolution- 40(W) X RGB X 536(H)
  -Interface – QSPI
  -Active Area- 19.8 x 44.22mm
  -Driver IC- RM67162
  -Viewing Angle- IPS Full View Angle
• USB – 1x USB Type-C port for power and programming
• I/O Interface
  -2x 14-pin headers with up to 18x GPIO, 1x SPI, 10x ADC, SPI, UART, Touch interfaces, 5V, 3.3V, and GND
  -4-pin STEMMA QT/Qwiic connector with 3.3V, GND, and 2x GPIOs (IO43, IO44)
• Development- Arduino, PlatformIO-IDE, Micropython
• Others
  -Bat Voltage Detection- IO04
  -Onboard functions- Boot (IO00) + Reset + IO21 Button
• Power
  -5V via USB Type-C port
  -2-pin 1.25mm pitch JST header for LiPo battery
• Dimensions – 60 x 25.5 x 10mm

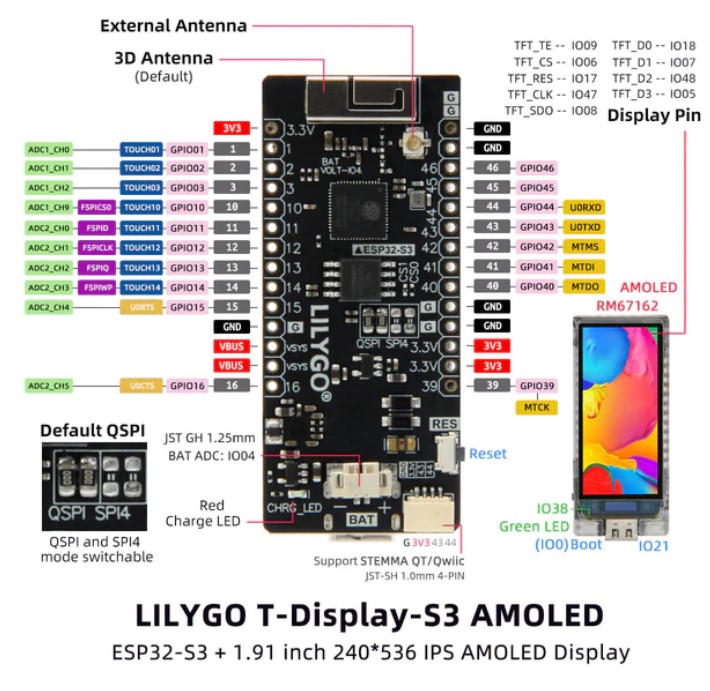

Pinout

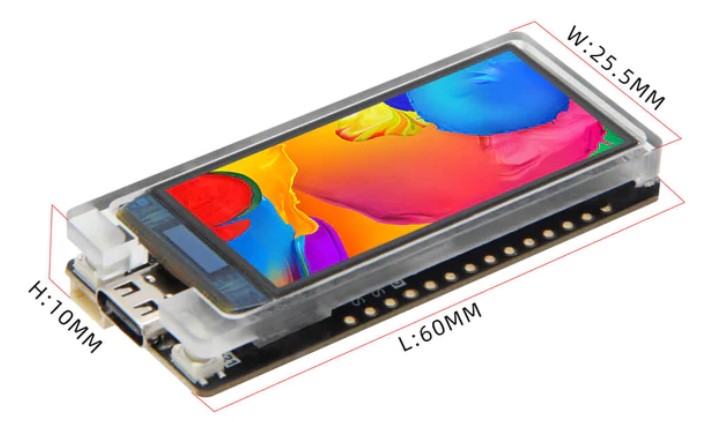

Dimensions

The datasheets, schematics, and basic instructions to get started with the Arduino IDE, PlatformIO, or the ESP-IDF may all be found on GitHub.

Comparison

The T-Display-S3 AMOLED is quite comparable to the T-Display-S3 and the T-Display-S3 Touch; the primary distinctions between these three displays are detailed in the table that follows.

Application

It is compatible with any microcontroller that supports SPI using the SPI interface. A module is a practical option for portable applications because it has a built-in battery management mechanism. It is perfect for wearable and Internet of Things projects because of its small size and low power consumption.

Purchase Information

The product page sells T-Display-S3 AMOLED for $25.68 USD, and T-Display-S3 Touch Screen for $21.22 USD. On AliExpress for $33.98, the original T-Display-S3, which costs $19.98, and the Touch model, which costs $26.95.
