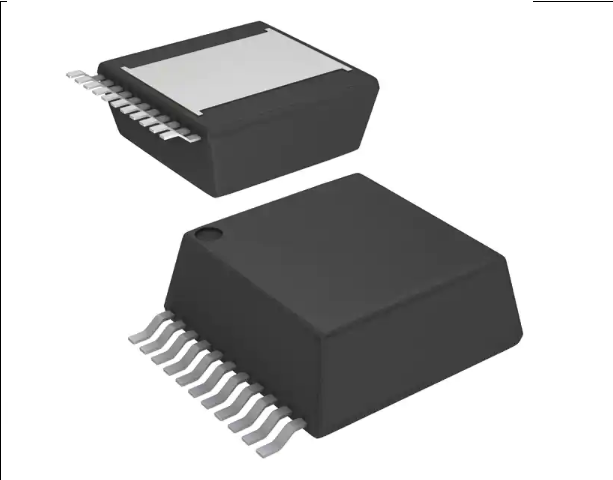

48W, 8A SIMPLE SWITCHER® Power Module with 20V Maximum Input Voltage. The LMZ12008 SIMPLE SWITCHER© power modules are an easy to use step down DC to DC solution capable of driving up to 8A load.

Texas Instruments LMZ120xx SIMPLE SWITCHER® Power Modules provide easy-to-use step-down DC-DC solutions with exceptional power conversion efficiency, output voltage accuracy, line and load regulation. LMZ12001 / LMZ12002 / LMZ12003 SIMPLE SWITCHER® Power Modules can accept an input voltage rail between 4.5V and 20V and deliver an adjustable, highly accurate output voltage as low are 0.8V. These TI power modules have either 1A (LMZ12001), 2A (LMZ12002), or 3A (LMZ12003) output current and offer efficiency of up to 92%. The LMZ12001, LMZ12002, and LMZ12003 have a -40 to +125°C junction temperature range and provide fast transient response for FPGAs and ASICs. These TI devices are ideal for use in point of load conversions from 5V and 12V input rail, time critical, space-constrained high thermal requirement, and negative output voltage applications.

Features:

  • Integrated shielded inductor
  • Simple PCB layout
  • Fixed switching frequency (350kHz)
  • Flexible startup sequencing using external soft-start, tracking and precision enable
  • Protection against inrush currents and faults such as input UVLO and output short circuit
  • Single exposed pad and standard pinout for easy mounting and manufacturing
  • Fully enabled for WEBENCH® Power Designer
  • High efficiency reduces system heat generation
  • Low radiated emissions (EMI) complies with EN55022
  • Only 7 external components
  • Low output voltage ripple
  • No external heat sink required

Specifications

  • Applications:ITE (Commercial)
  • Current – Output (Max):8A
  • Efficiency:92%
  • Features:UVLO
  • Mounting Type:Surface Mount
  • Number of Outputs:1
  • Operating Temperature:-40°C ~ 125°C
  • Package / Case:TO-PMOD-11, Power Module
  • Size / Dimension:0.59″ L x 0.59″ W x 0.23″ H (15.0mm x 15.0mm x 5.9mm)
  • Type:Non-Isolated PoL Module
  • Voltage – Input (Max):20V
  • Voltage – Input (Min):6V
  • Voltage – Output 1:0.8 ~ 6V

Typical Application

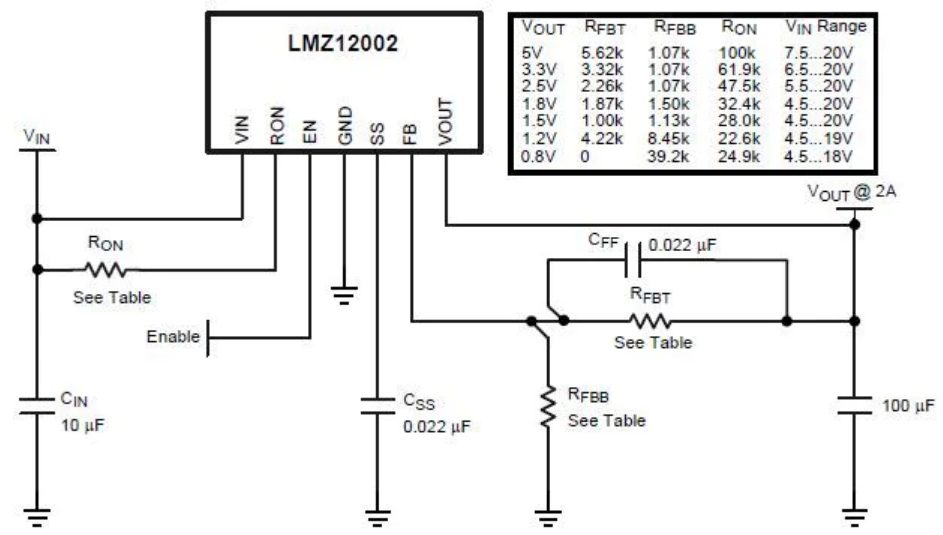

Datasheets

more information: https://www.ti.com/product/LMZ12008
