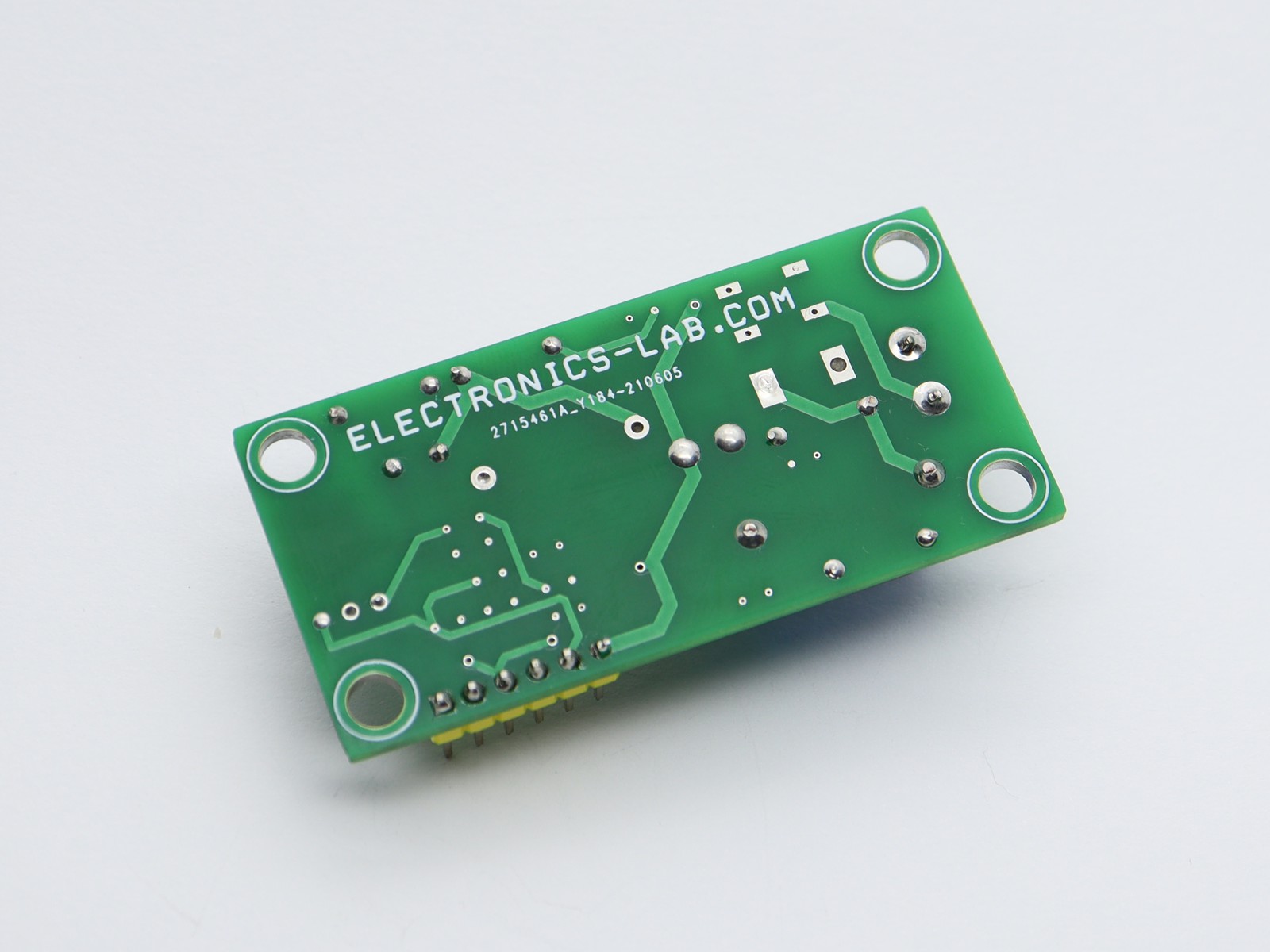

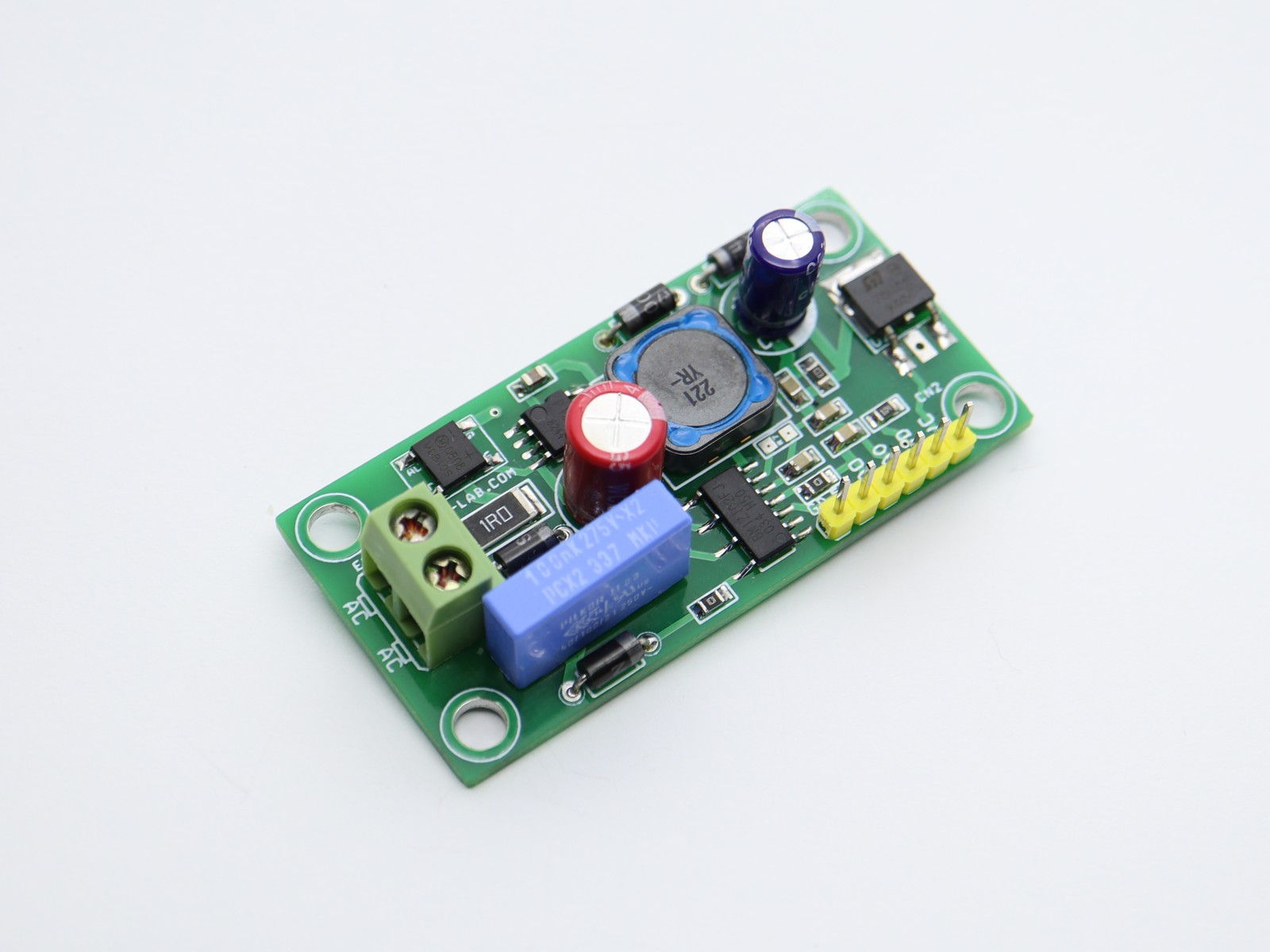

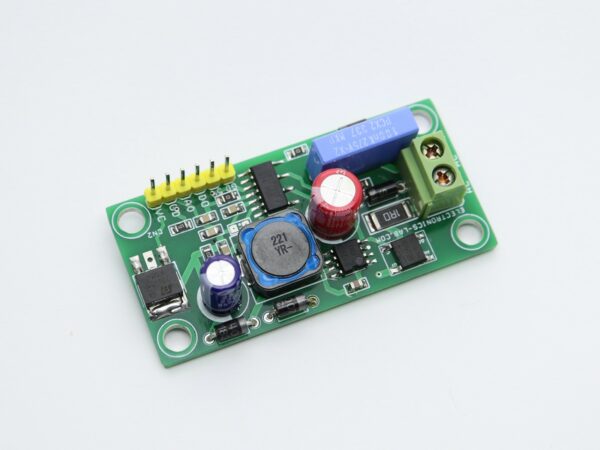

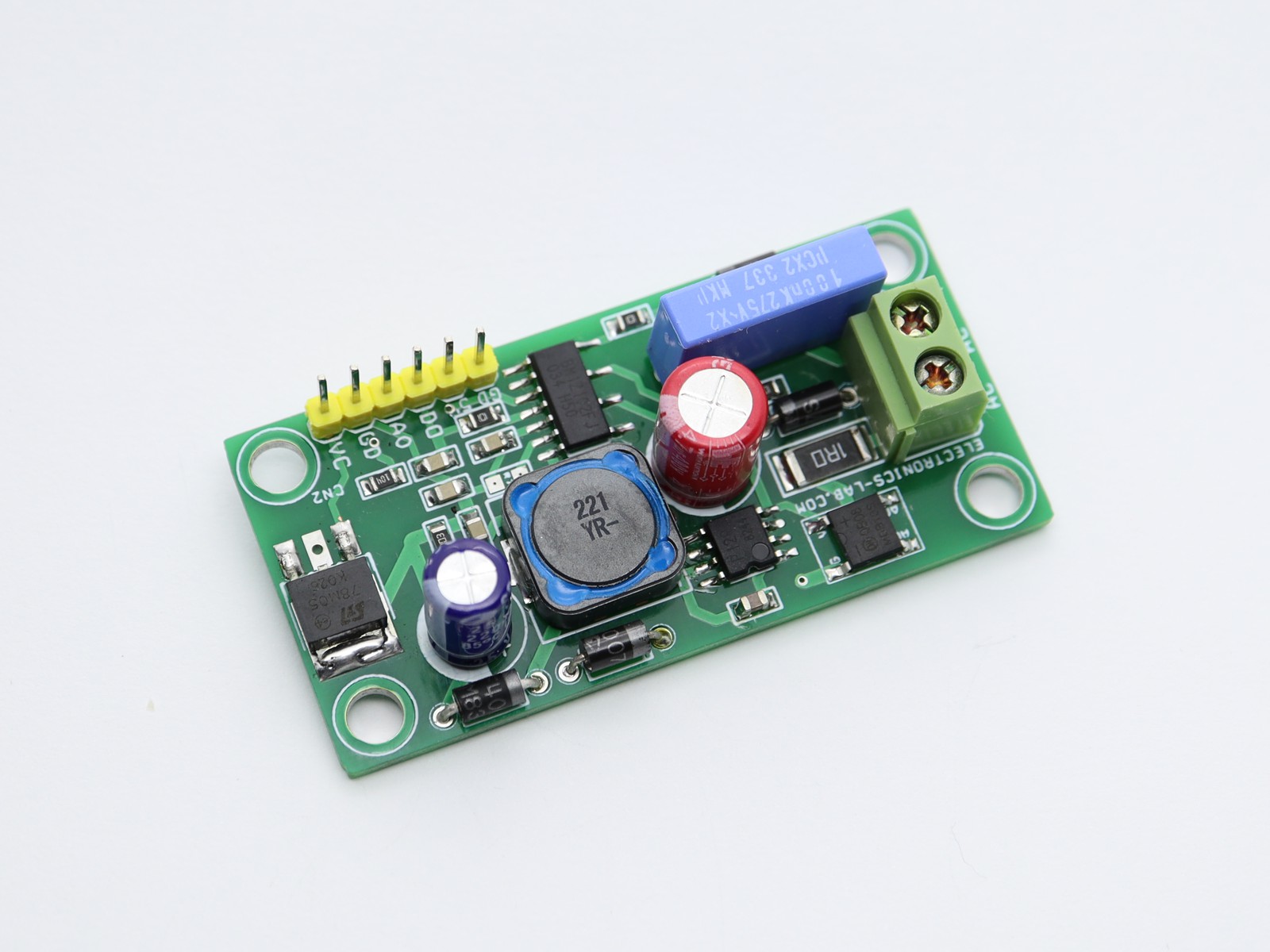

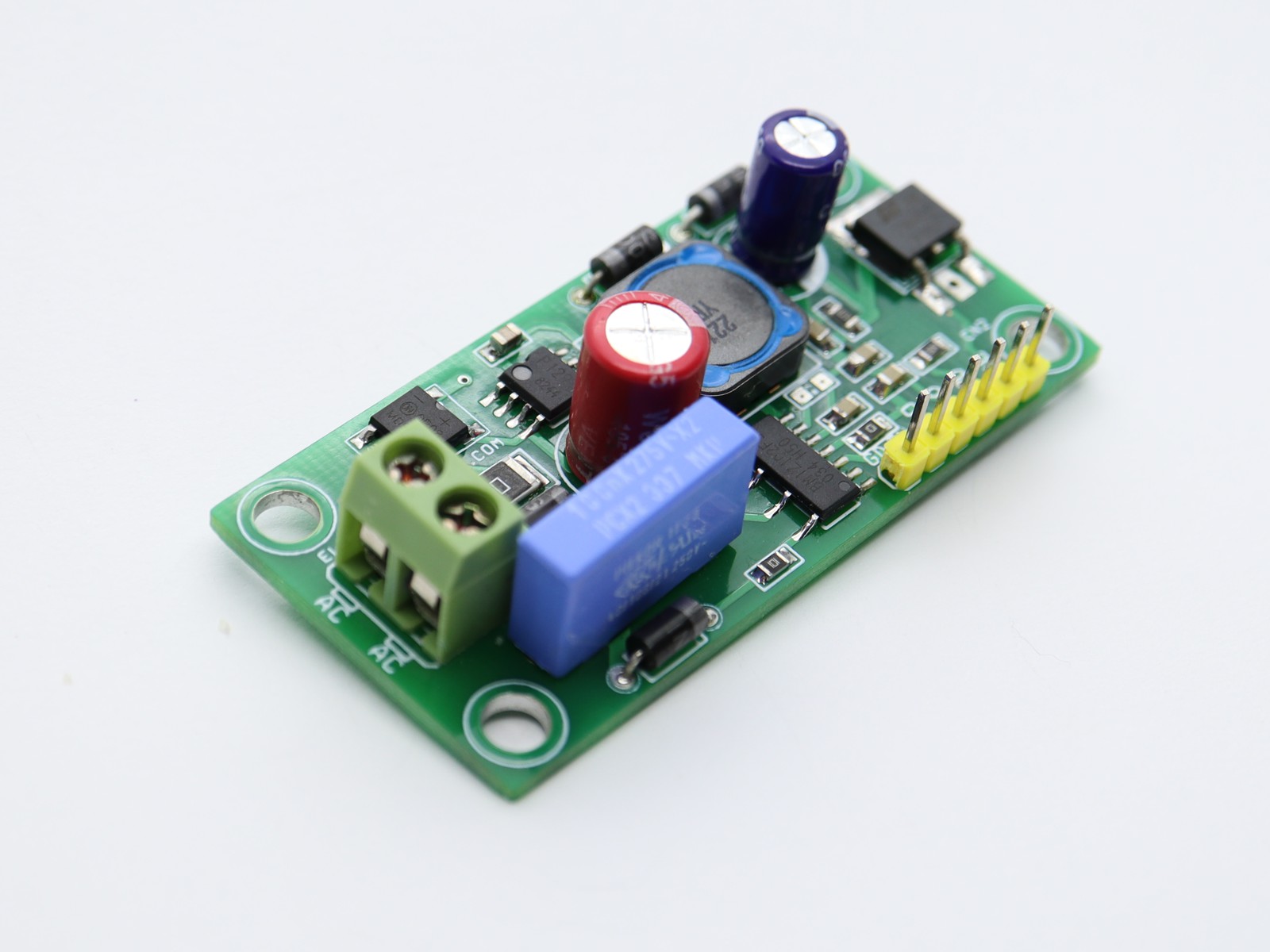

AC Voltage Zero Cross Detector

Description

This project provides AC voltage zero-cross timing detection and a DC voltage after diode rectification with high accuracy. Possible applications for such circuits are AC motor controllers, AC lamp controllers, AC Dimmer Controllers, Home Appliances. The circuit outputs a zero-cross signal from 90 Vac to 264 Vac input. The project is based on BM1Z102FJ chip which outputs a high precision zero-cross timing of targeted AC voltage and a DC voltage after diode rectification of high accuracy. The project also includes high voltage offline AC to DC converter chip BM2P129TF.

more information: https://www.electronics-lab.com/project/ac-voltage-zero-cross-detector/
