Magnetic field sensor using AD22151

Description

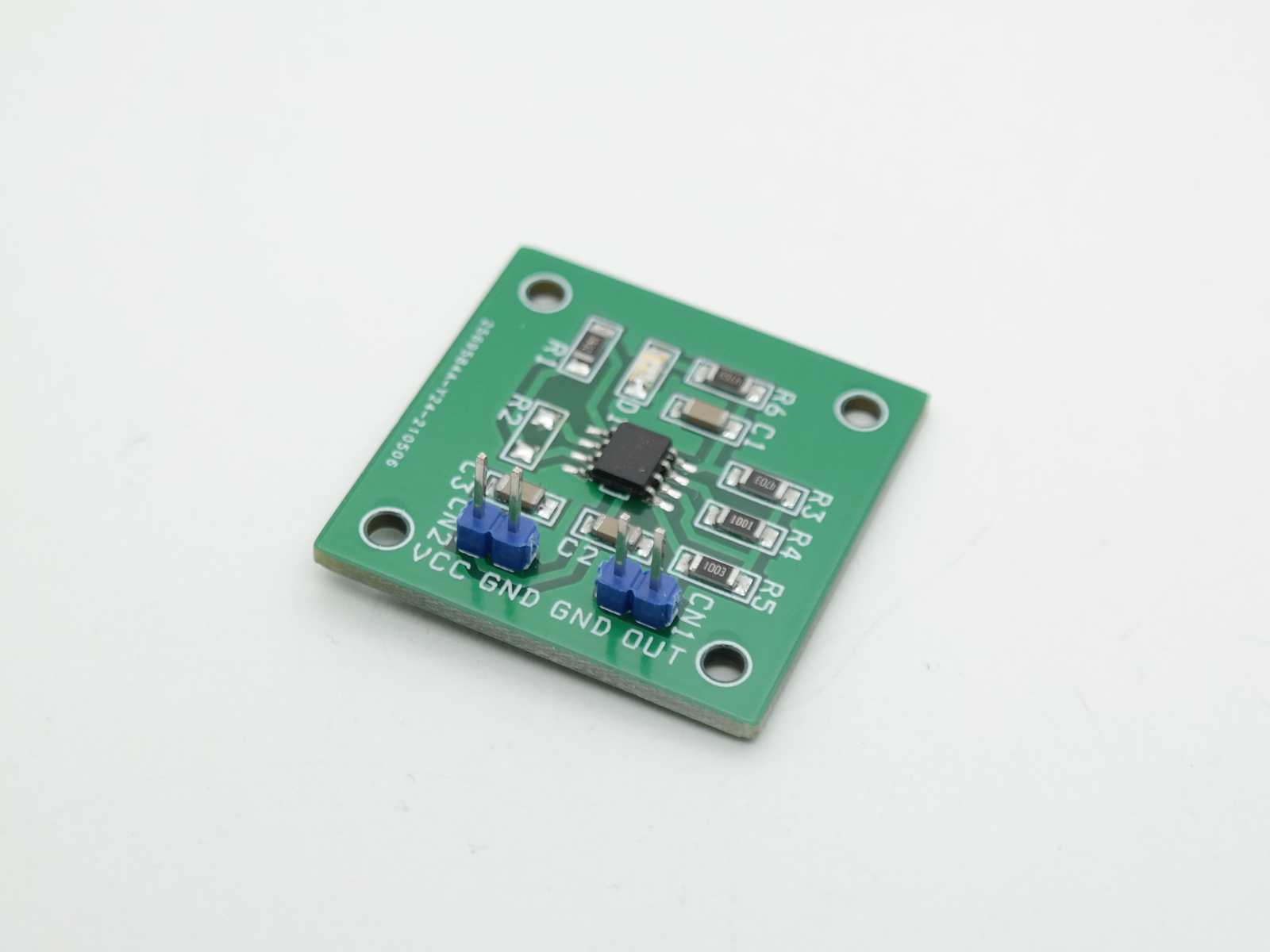

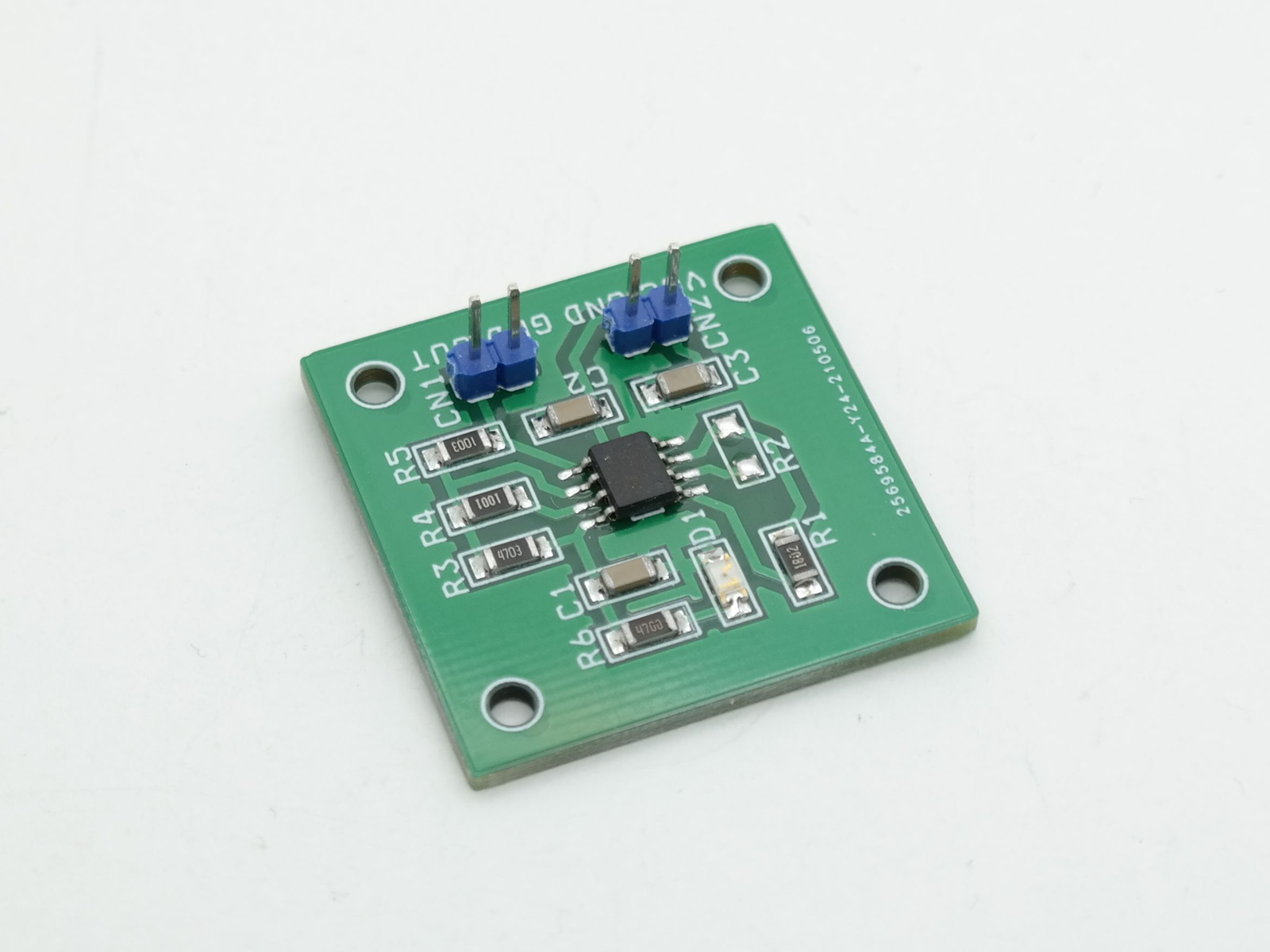

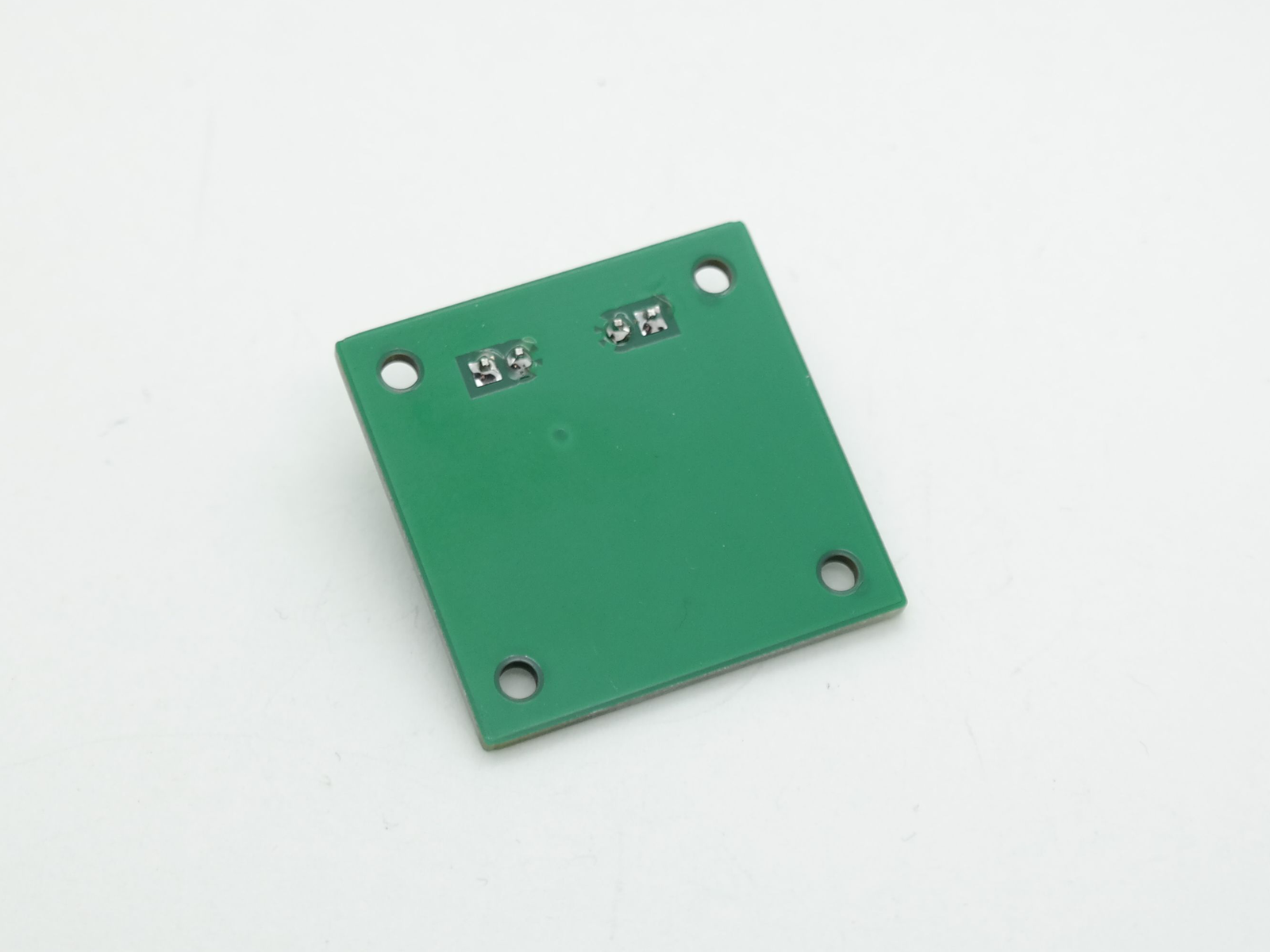

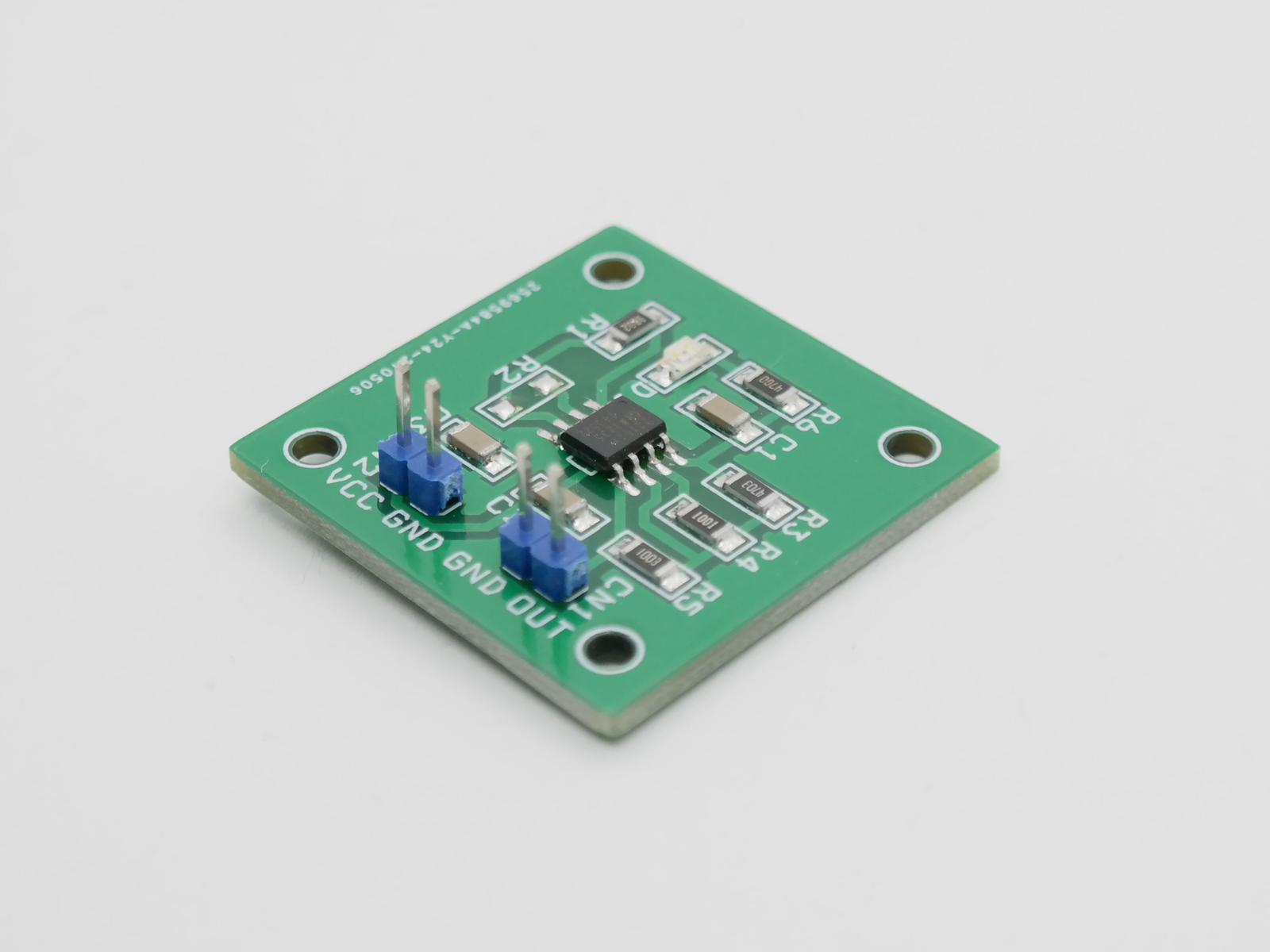

Magnetic field sensor project using AD22151 IC from Analog Devices, The AD22151 is a linear magnetic field transducer. The sensor output is a voltage proportional to a magnetic field applied perpendicularly to the package top surface. The sensor combines integrated bulk Hall cell technology and instrument technology to minimize temperature-related drifts associated with silicon Hall cell characteristics.

Features

• Supply 5V DC @ 25mA
• Power Led On Board
• Header connector for supply and output
• Normal Output 1.800V
• South side Magnet Output 4.800V
• North side Magnet Output 0.042V
