1.2V-25V/10A Adjustable Power Supply Using Power Op-Amp

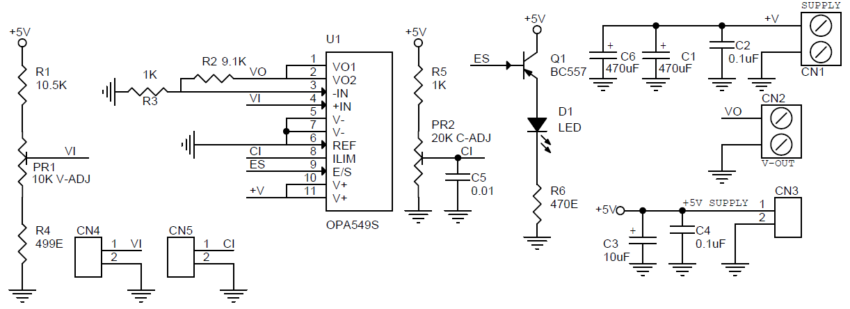

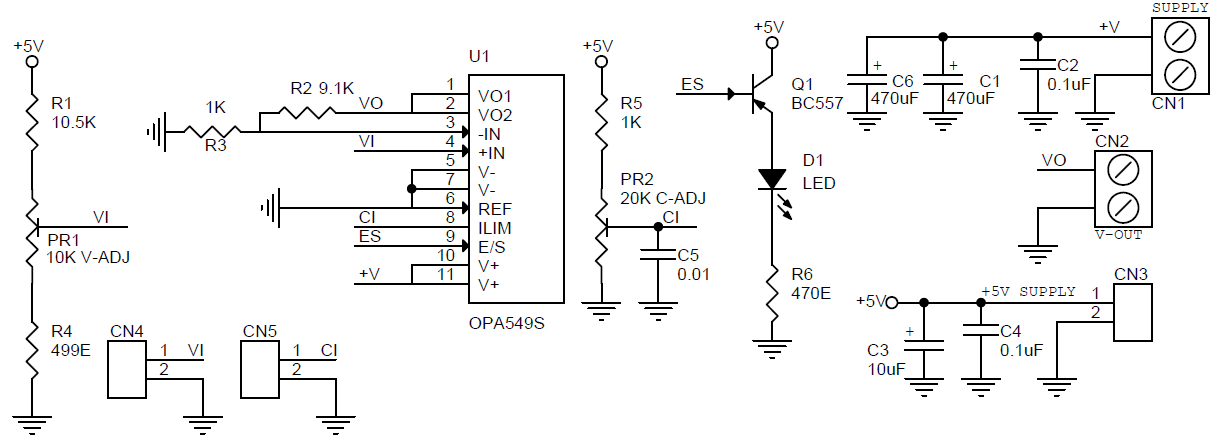

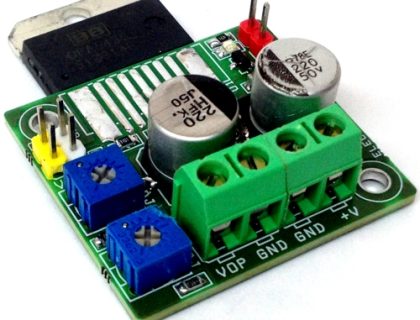

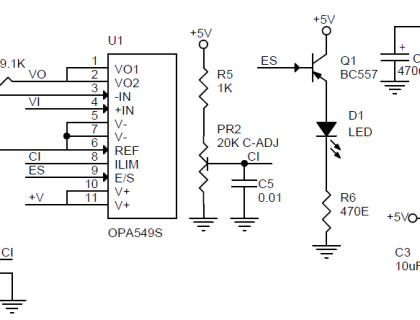

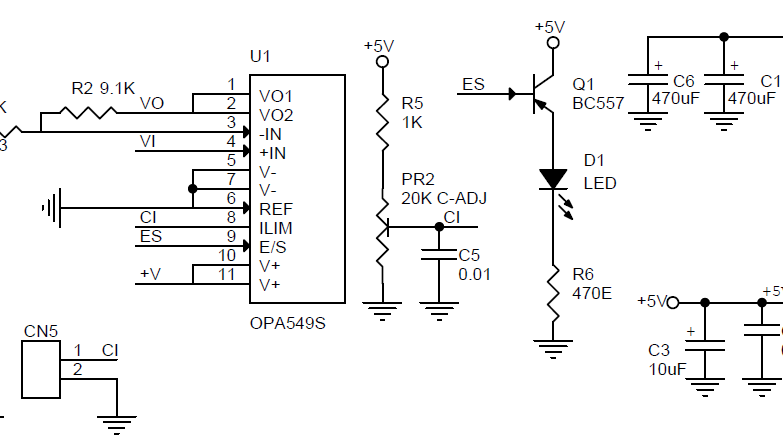

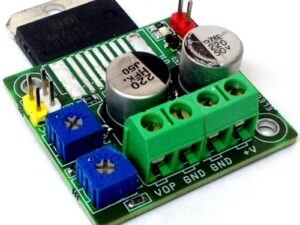

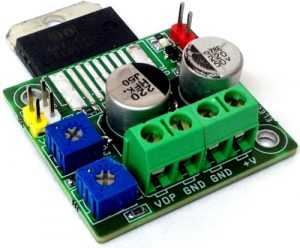

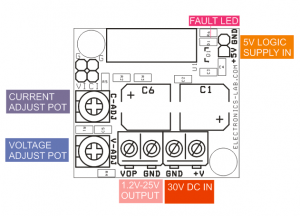

[Customadds id=643821] This is a small size power supply based on OPA549 power op-amp that provides output voltage 1.2V to 25V with 0 to 10A adjustable current limit. Two onboard trimmer potentiometers provided to adjust the voltage and current, LED D1 is over temperature indicator. The circuit w... Read More
