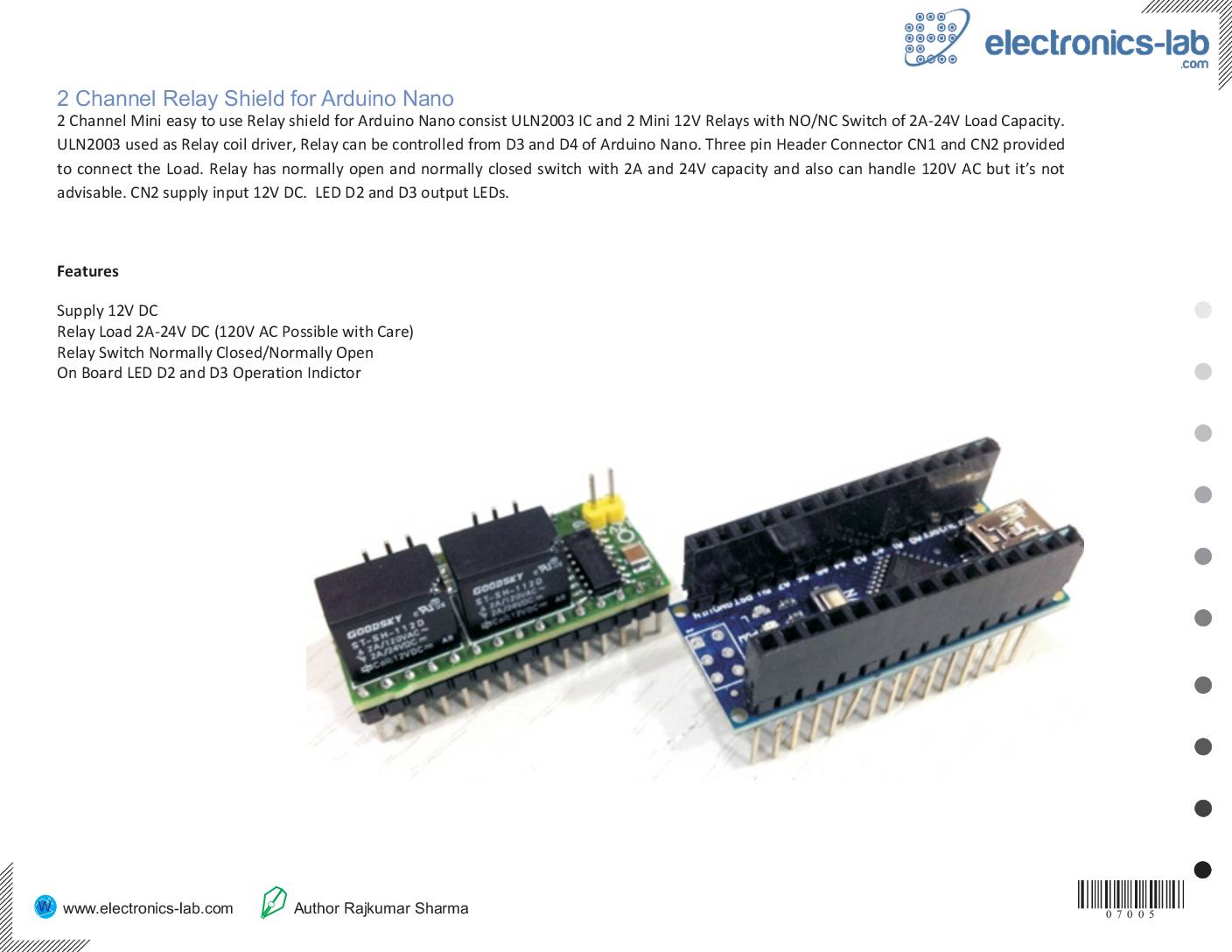

2 Channel Relay Shield for Arduino Nano

[Customadds id=643821] 2 Channel Mini easy to use Relay shield for Arduino Nano consists of ULN2003 IC and 2 Mini 12V Relays with NO/NC contacts of 2A-24V Load Capacity. ULN2003 used as Relay coil driver. Relay can be controlled from D3 and D4 of Arduino Nano. Three-pin Header Connector CN1 and C... Read More
