50V - 10A Bidirectional DC Motor Driver Using A3941

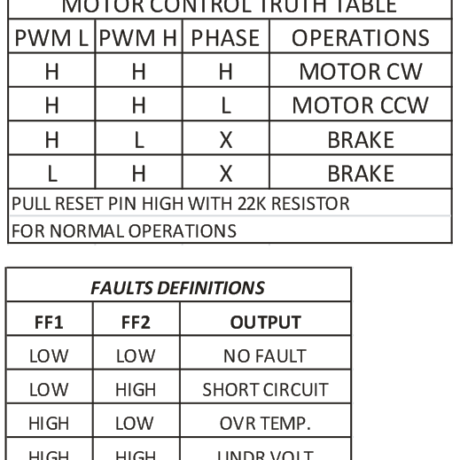

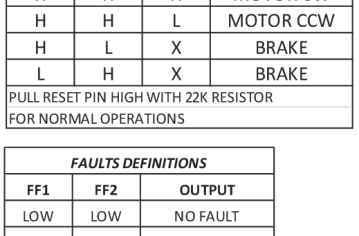

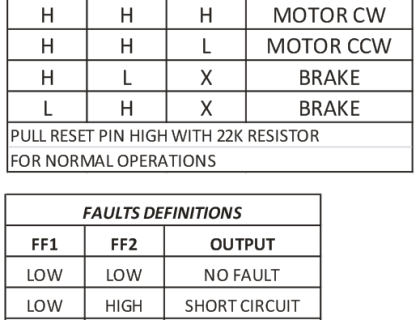

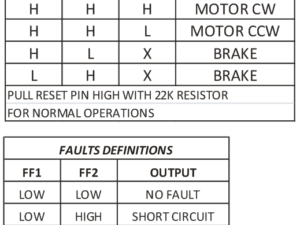

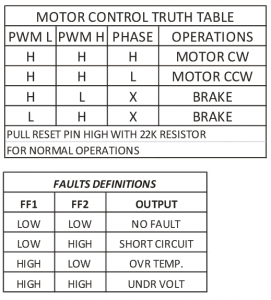

[Customadds id=643821] This tiny board is designed to drive a bidirectional DC brushed motor of large current. DC supply is up to 50V DC. A3941 gate driver IC and 4X N Channel Mosfet IRLR024 used as H-Bridge. The project can handle a load of up to 10A. Screw terminals are provided to connect the ... Read More
