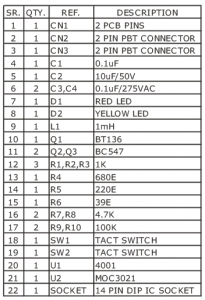

This is the image preview of the following page:

Isolated Digital ON/OFF Switch for AC load

[Customadds id=643821] ON/OFF AC load Controller project offers simple On/Off Switch Control with two tact switch. Specifications Input supply - 12 VDC @ 40 mA Output - upto 500 W - 230 VAC Onboard tactile switch for ON/OFF control Opto-isolated Triac based design Power-On LED indica... Read More
