Mini Audio Amplifier

  • Rajkumar Sharma
  • 14.655 Views
  • moderate
  • Tested
  • SKU: EL34276
  • Quote Now

MINI_AMP_PIC

This project is a mini Audio Amplifier based on LM386 IC.

Description

The Mini Audio Amplifier project is a good choice for battery operated gadgets.  It is based on Texas instruments LM386 IC, provides high quality Audio.

Specifications

  • Wide power supply input 6 to 12 VDC
  • 500 mW output @ 8 Ohms load
  • Takes standard audio signal as input
  • Low quiescent current drain 4 mA IC
  • The quiescent power drain is only 24 mW when operating from 6 VDC
  • Onboard preset for volume adjust
  • Header connector for connecting power supply, audio signal and speaker
  • Onboard power indication LED
  • On/Off PCB mounted slide switch for power supply
  • Four mounting holes of 3.2 mm each
  • PCB dimensions 41 mm x 41 mm

Schematic

MINI_AMP_SCHEMATIC

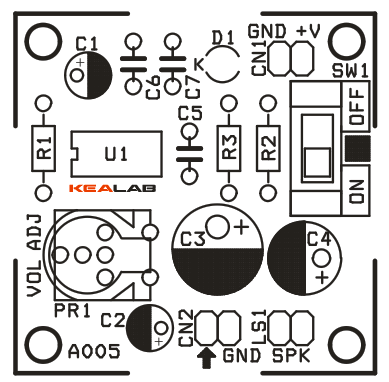

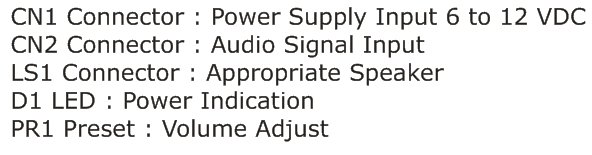

MINI_AMP_Details

Parts List

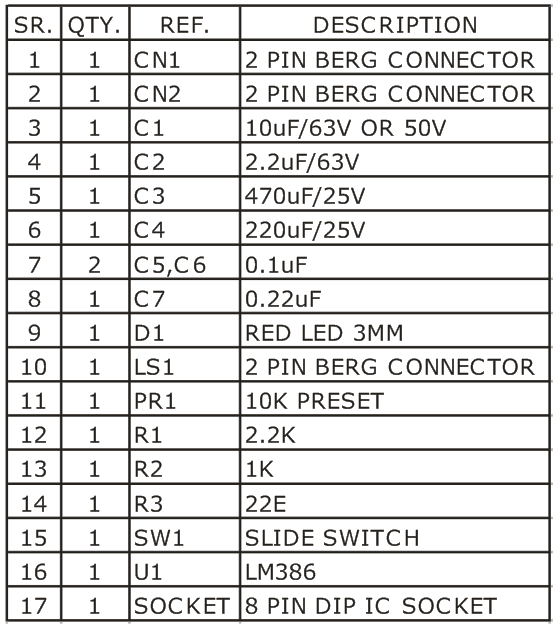

MINI_AMP_BOM
