OLEDUINO – Arduino compatible OLED display

Rajkumar Sharma
18 Views
moderate
Tested
SKU: EL156645
Quote Now
0 Likes

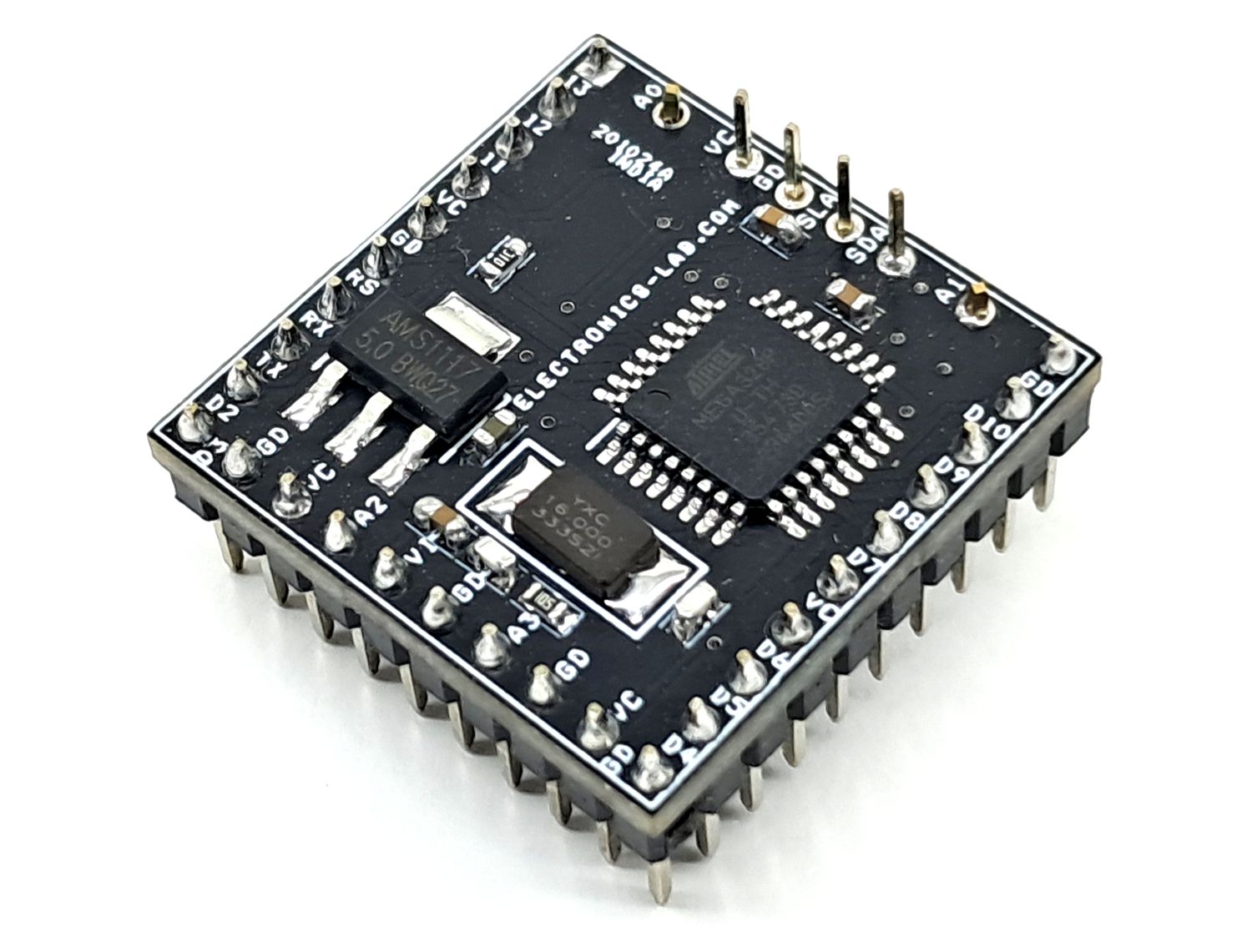

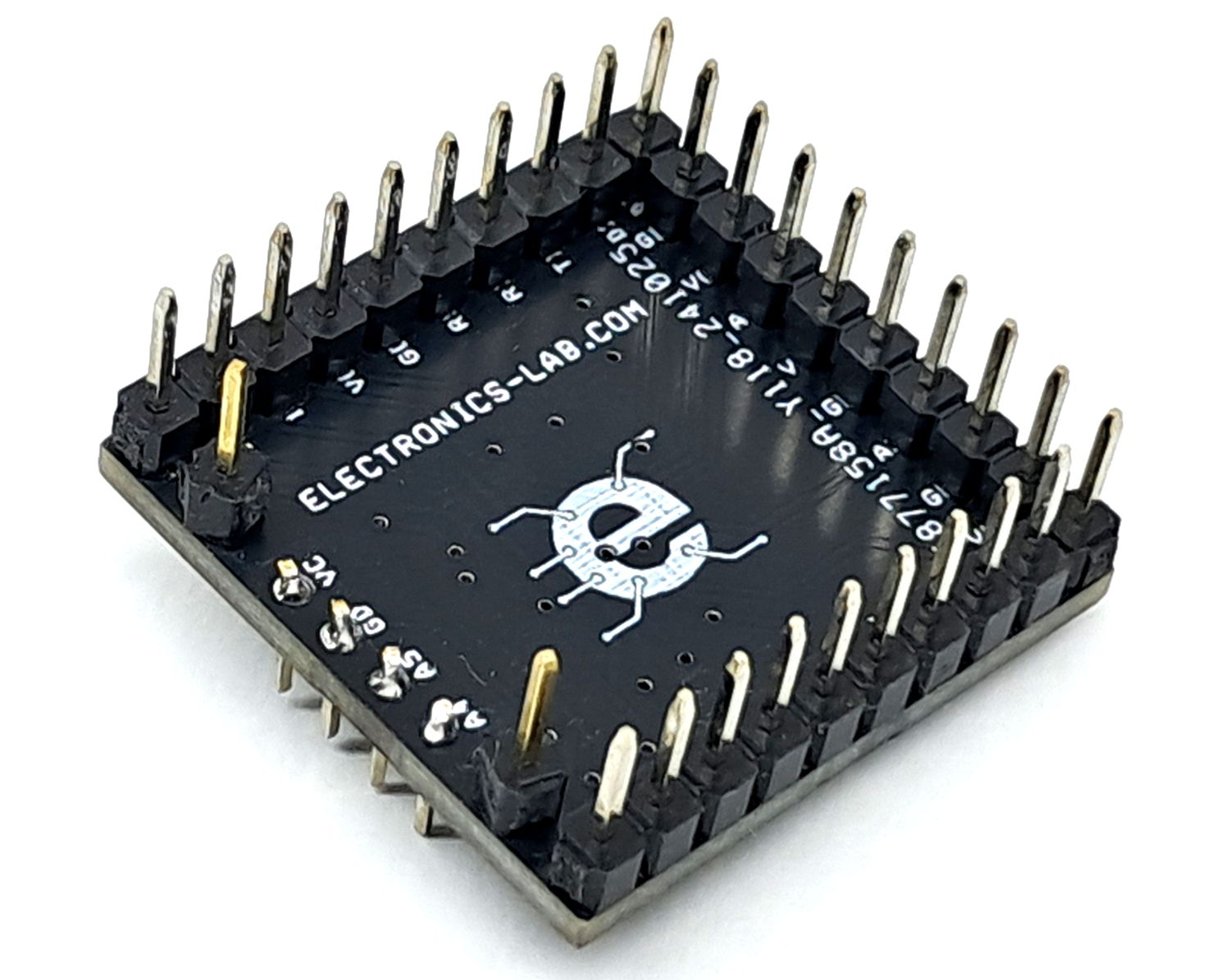

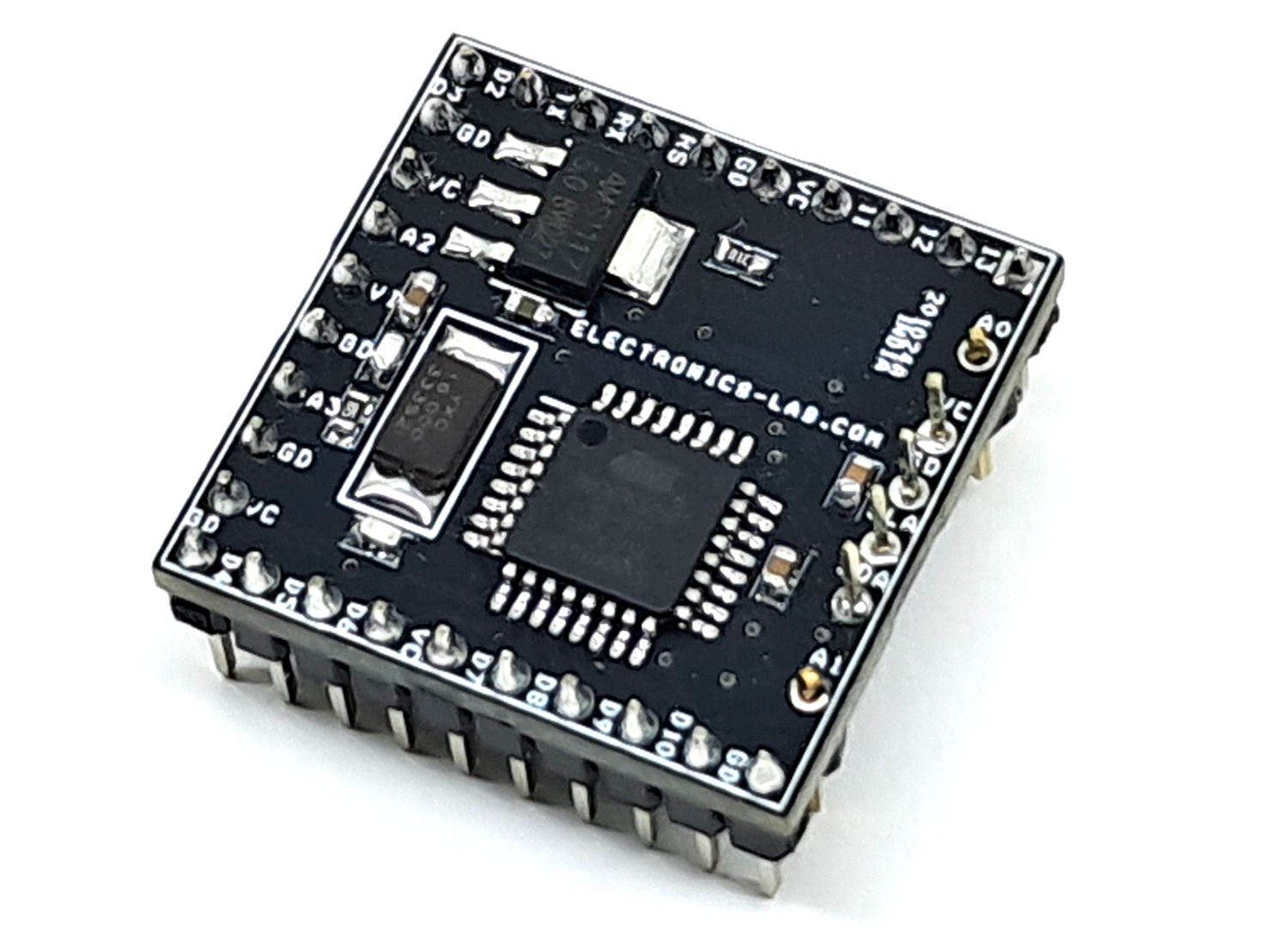

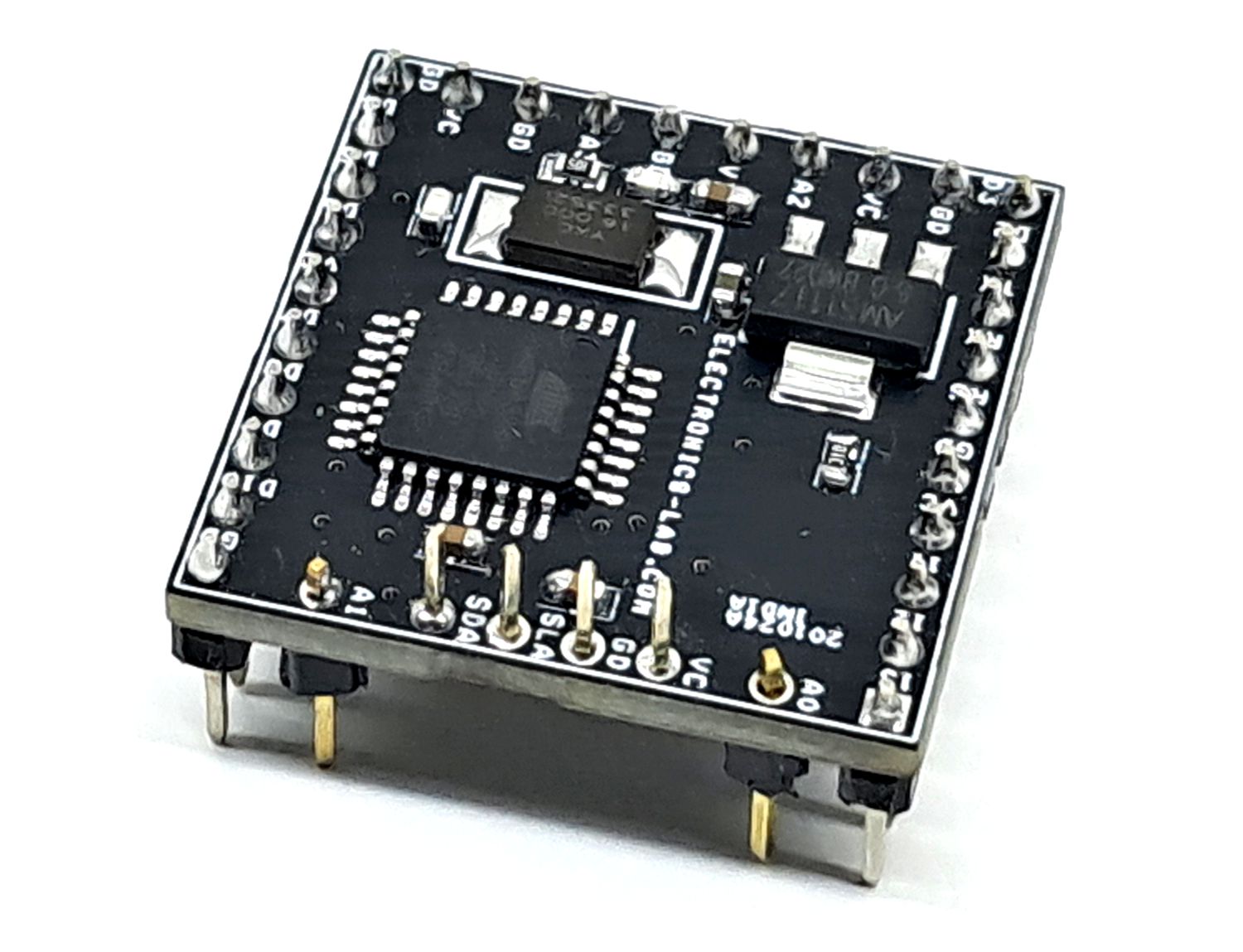

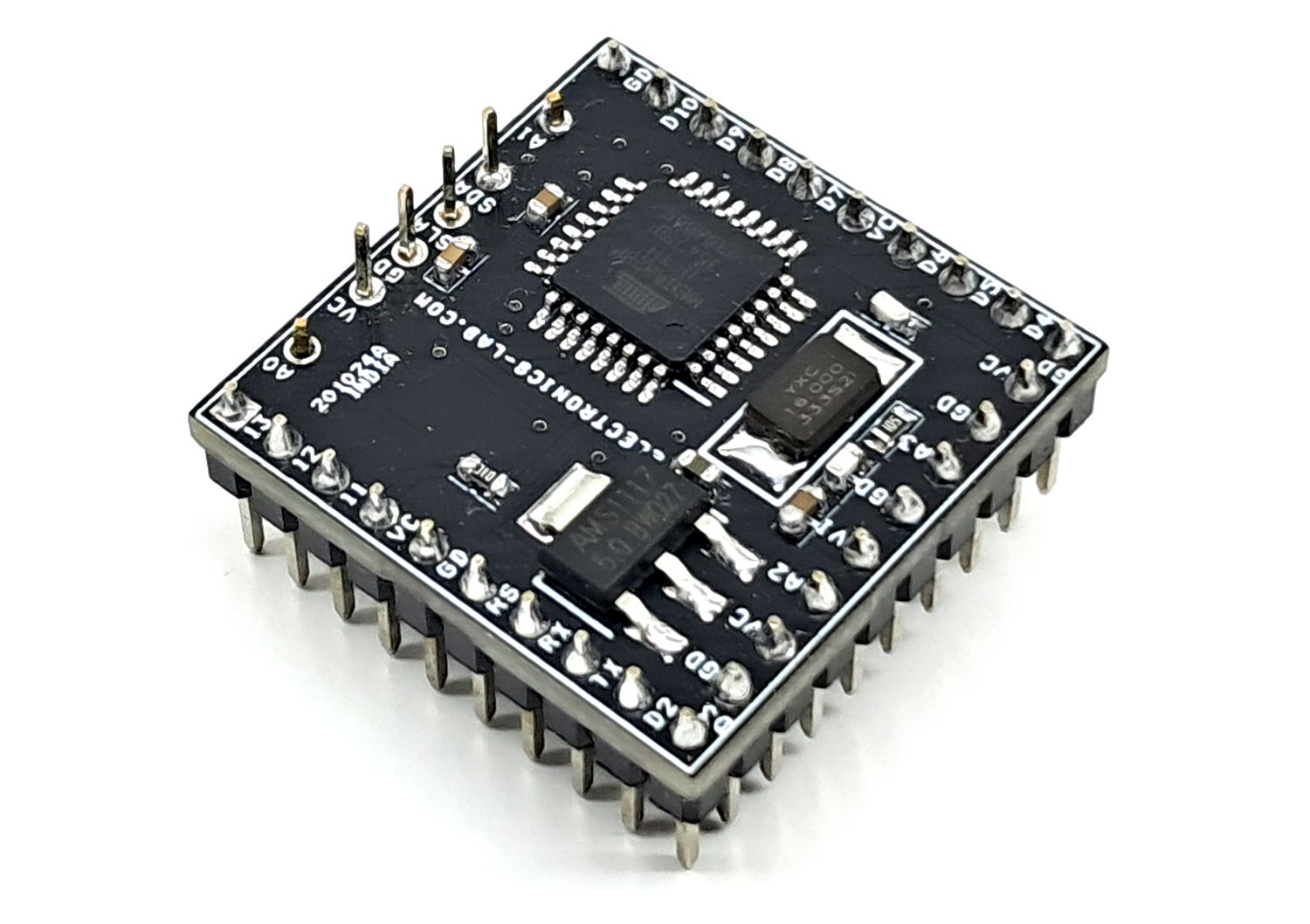

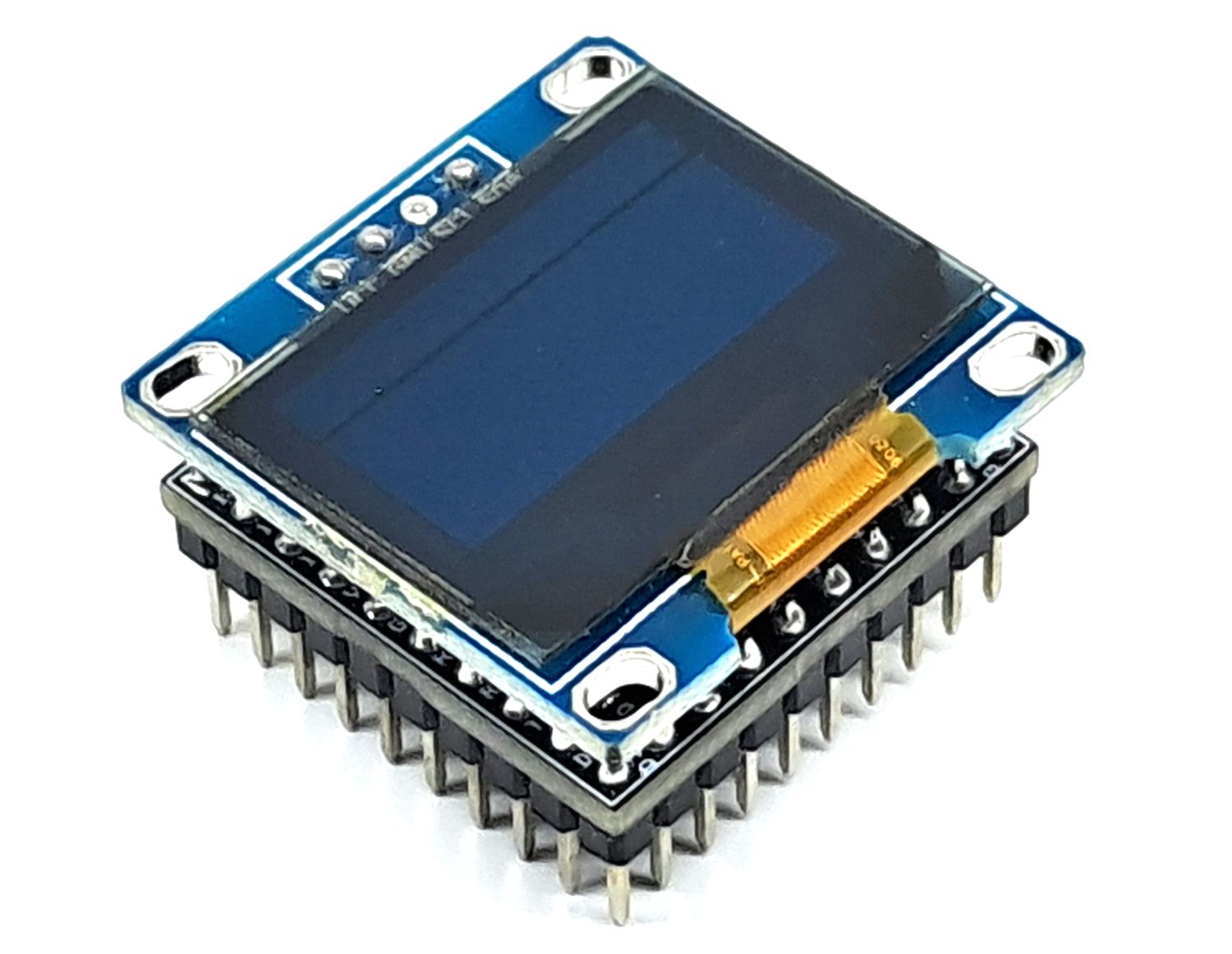

This OLEDUINO Board is a compact, feature-rich board that incorporates the ATMEGA328 Arduino microcontroller, a 0.96-inch 128×64 OLED display (SSD136), a 5V regulator, and headers connectors that provide access to all Arduino I/O lines. Notably, the board’s size is smaller than the OLED display, and an onboard connector is supplied for bootloader burning and Arduino programming.

Note: This project works as a standalone or along with the Smart Soldering Iron Controller – Precision Heater Controller board published previously.

Key Features

Power Supply: 6V to 11V (V_IN)
Power Supply: 5V-VCC
Connector for Bootloader and Arduino Programming
4-Pin Connector for OLED Display (0.96 Inch)
Board Size: 25.72 x 25.56 mm

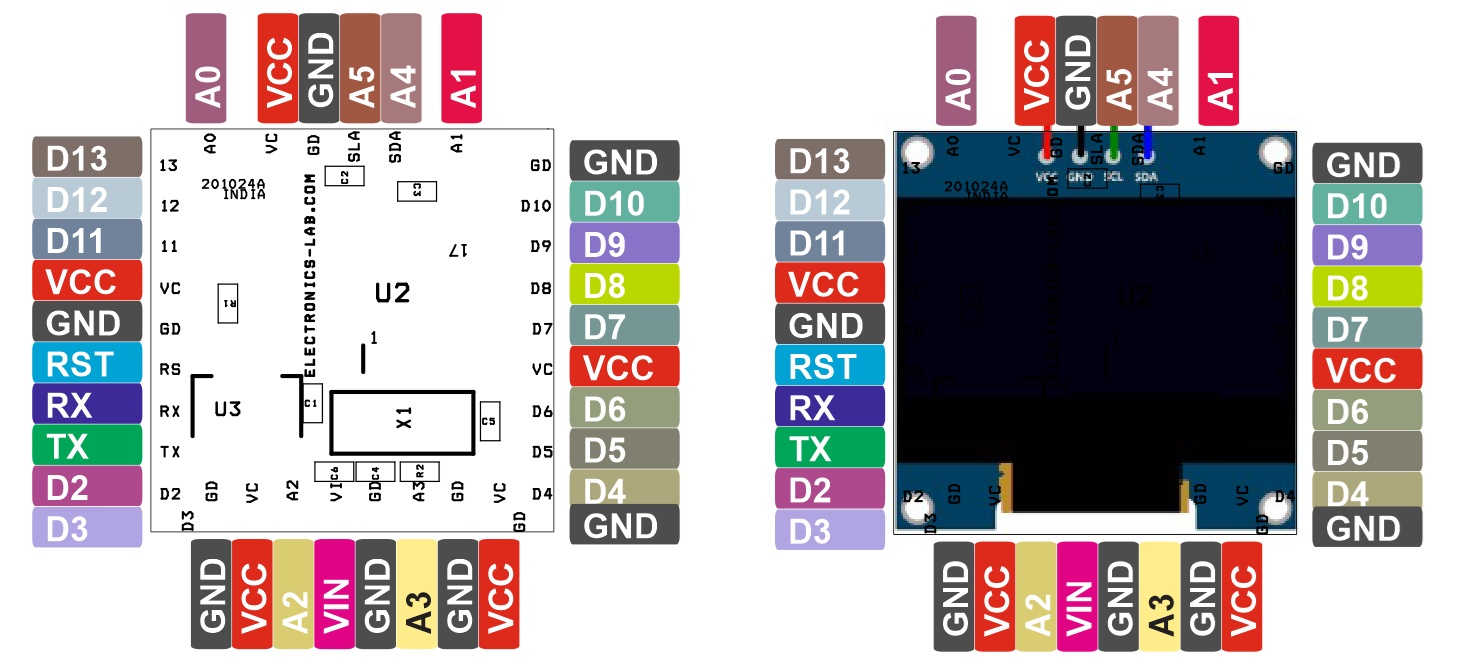

Arduino Programming

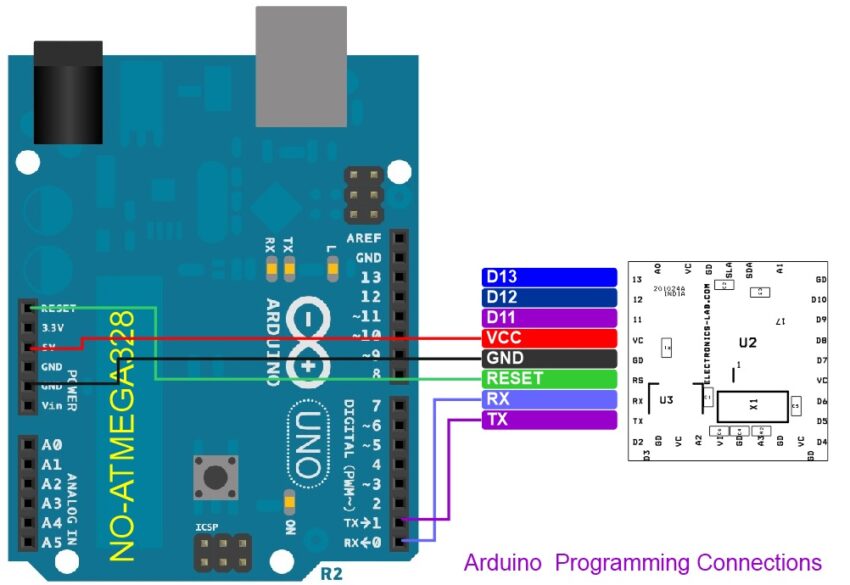

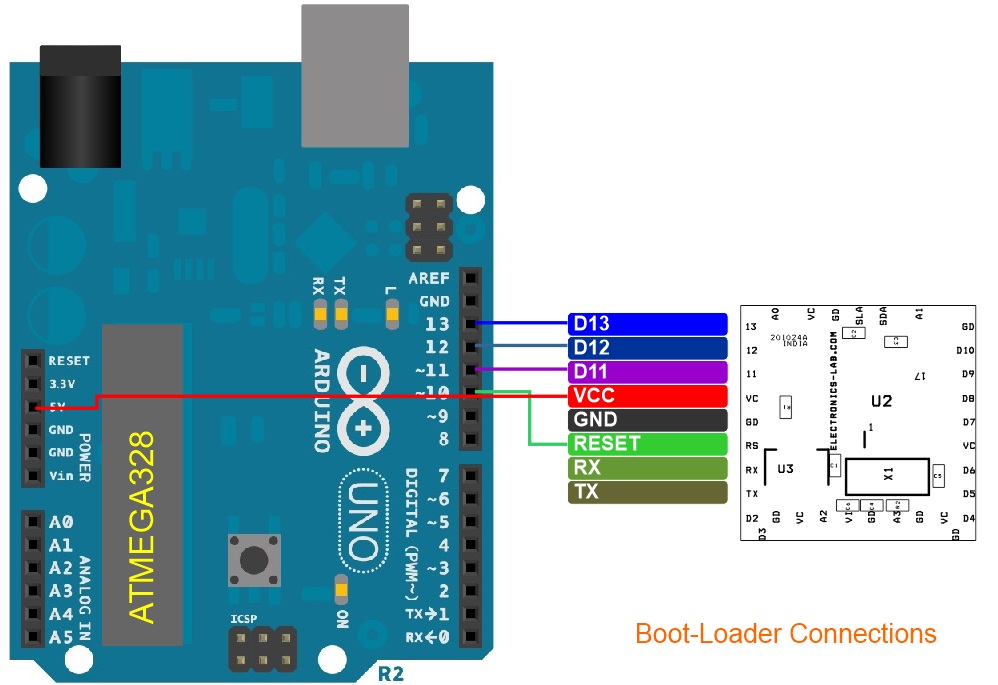

For more information on Arduino programming and bootloader installation, users can refer to the official Arduino documentation, specifically the “Arduino to Breadboard” example.

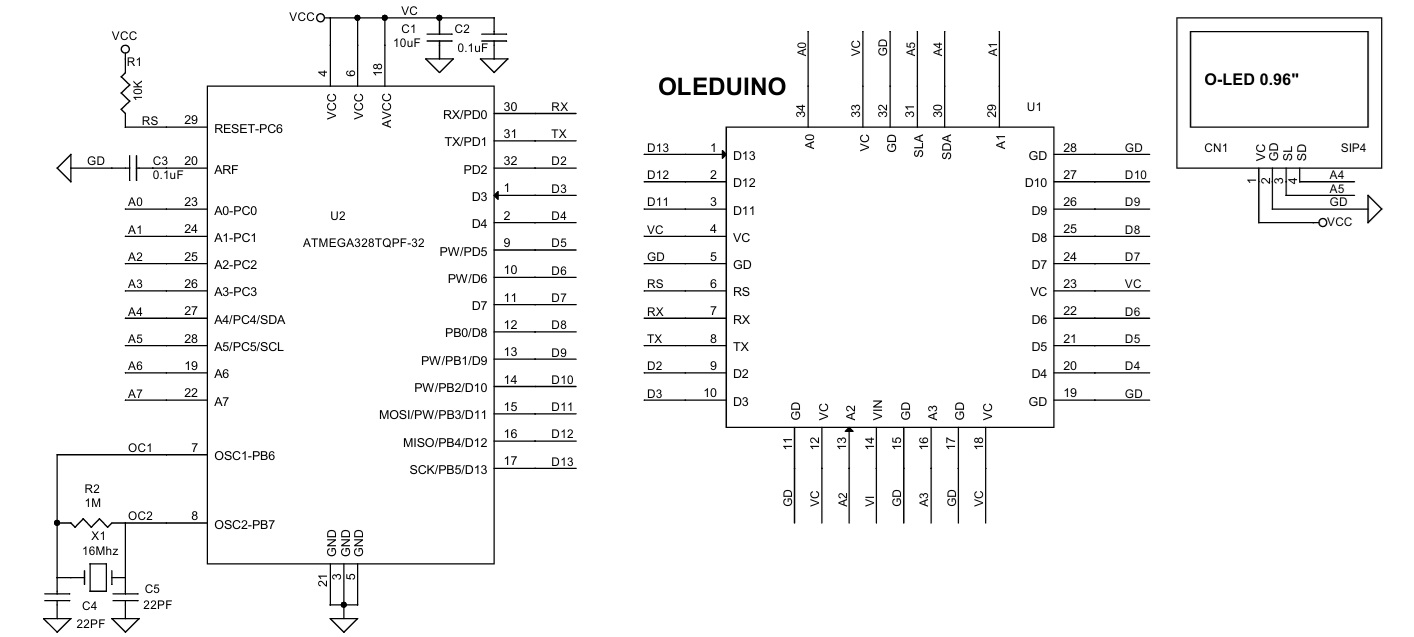

Schematic

Parts List

NO.	QNTY	REF	DESC	MANUFACTURER	SUPPLIER	SUPPLIER PART NO
1	1	CN1	4 PIN MALE HEADER PITCH 2.54MM	WURTH	DIGIKEY	732-5317-ND
2	1	C1	10uF/16V CERAMIC SMD SIZE 0603	YAGEO/MURATA	DIGIKEY
3	2	C2,C3	0.1uF/16V CERAMIC SMD SIZE 0603	YAGEO/MURATA	DIGIKEY
4	2	C4,C5	22PF/16V CERAMIC SMD SIZE 0603	YAGEO/MURATA	DIGIKEY
5	1	R1	10K 5% SMD SIZE 0603	YAGEO/MURATA	DIGIKEY
6	1	R2	1M 5% SMD SIZE 0603	YAGEO/MURATA	DIGIKEY
7	1	U1	OLED DISPLAY 0.96INCH 128X64	MIDAS	DIGIKEY	3086-MDOB128064V2V-YI-ND
8	1	U2	ATMEGA328TQPF-32	MICROCHIP	DIGIKEY	ATMEGA328P-AU-ND
9	1	X1	16Mhz	ECS	DIGIKEY	XC1776CT-ND
10	2	CN	10 PIN MALE HEADER PITCH 2.54MM	WURTH	DIGIKEY	732-2670-ND
11	1	CN	9 PIN MALE HEADER PITCH 2.54MM	WURTH	DIGIKEY	732-5322-ND
