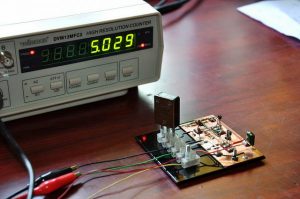

Dilshan Jayakody build a simple crystal tester based on Colpitts oscillator. He writes: This is simple Colpitts oscillator to test commonly available passive crystals which range between 2MHz to 27MHz. This unit must connect to an oscilloscope and/or frequency counter to get the frequency of th... Read More
