u-blox DAN-F10N – Dual-Band (L1/L5) GNSS Module with Integrated Patch Antenna in a Compact Package

The u-blox F10 dual-band GNSS platform, launched during the previous year, combines L1 and L5 bands to improve multipath resistance and provide meter-level positioning accuracy. It is intended for urban mobility use cases like aftermarket telematics and micromobility, where reliable and precise positioning is critical.

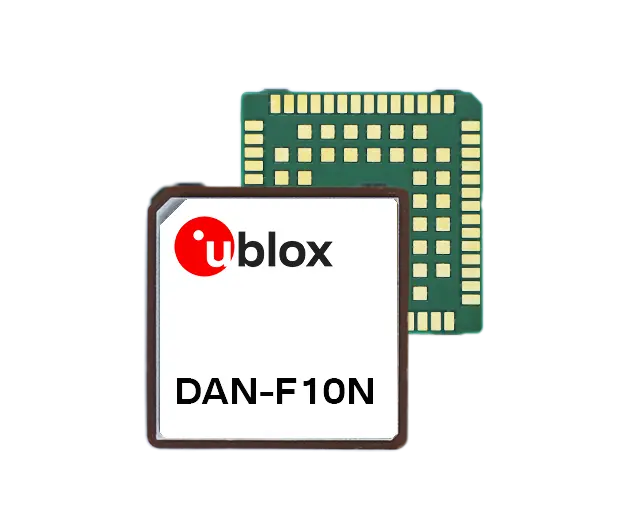

Following this technology, u-blox has now launched the DAN-F10N patch-antenna module, using the F10 platform’s dual-band GNSS support. It includes a 20 x 20 x 8 mm Right Hand Circular Polarized (RHCP) L1/L5 patch antenna that minimizes size and maximizes performance. The large beamwidth increases installation flexibility, and an optional external antenna provides further design flexibility.

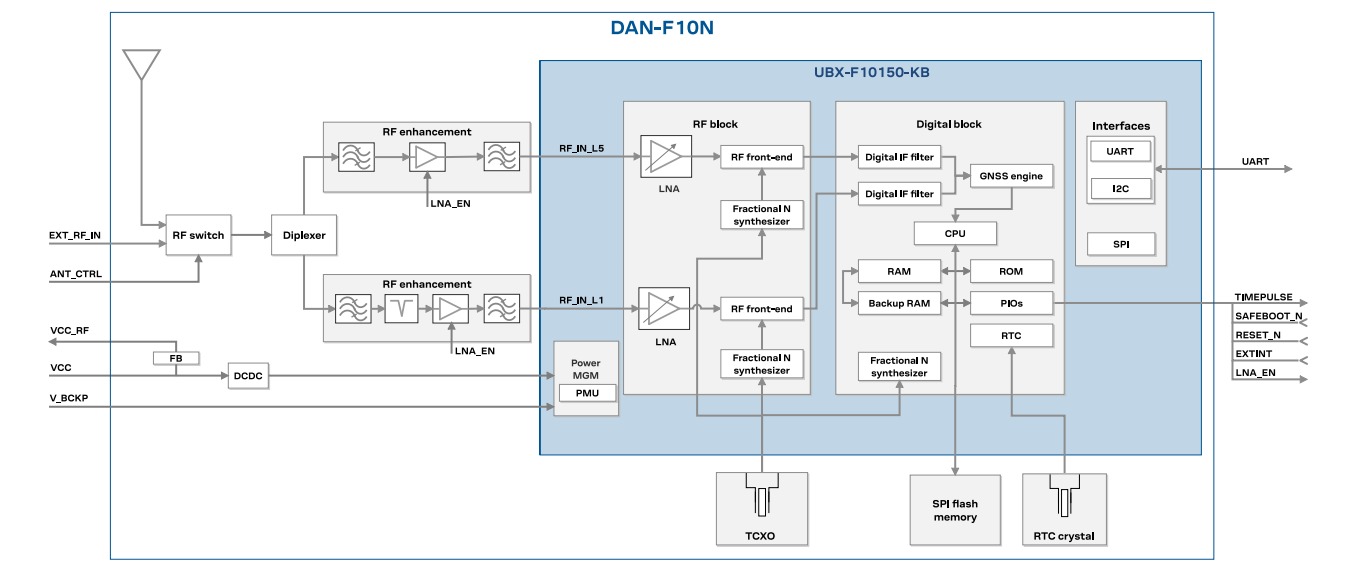

For enhanced RF performance, the DAN-F10N features a SAW-LNA-SAW design with an LTE B13 notch filter on the L1 RF path to provide improved out-of-band interference rejection. This renders the module ideal for use in devices that coexist near cellular modems, providing signal reliability in dense cityscapes.

u-blox DAN-F10N patch-antenna module specifications:

• GNSS receiver: u-blox F10 engine with dual-band (L1/L5) support
  • GPS: L1 C/A, L5
  • QZSS: L1C/A, L1S, L1Sb, L5
  • Galileo: E1B/C, E5a
  • BeiDou: B1C, B2a
  • NavIC: L5
  • SBAS: L1 C/A, BDSBAS B1C
• Positioning accuracy: 1.0m CEP (with SBAS), 1.5m CEP (without SBAS)
• Navigation update rate: Up to 10 Hz
• Sensitivity:
  • Tracking and Navigation: –164 dBm
  • Reacquisition: –156 dBm
  • Cold start: –145 dBm
  • Hot start: –156 dBm
• Acquisition times:
  • Cold start: 28s
  • Aided start: 2s
  • Reacquisition: 2s
• Storage: Internal flash for firmware upgrades
• Antenna: Integrated RHCP dual-band patch antenna (20 x 20 x 8 mm)
• External antenna support: Antenna switch function for active external GNSS antenna
• RF architecture: SAW-LNA-SAW with LTE B13 notch filter for interference mitigation
• Communication protocols: NMEA, UBX binary, RTCM v3.4, SPARTN v2.0.2

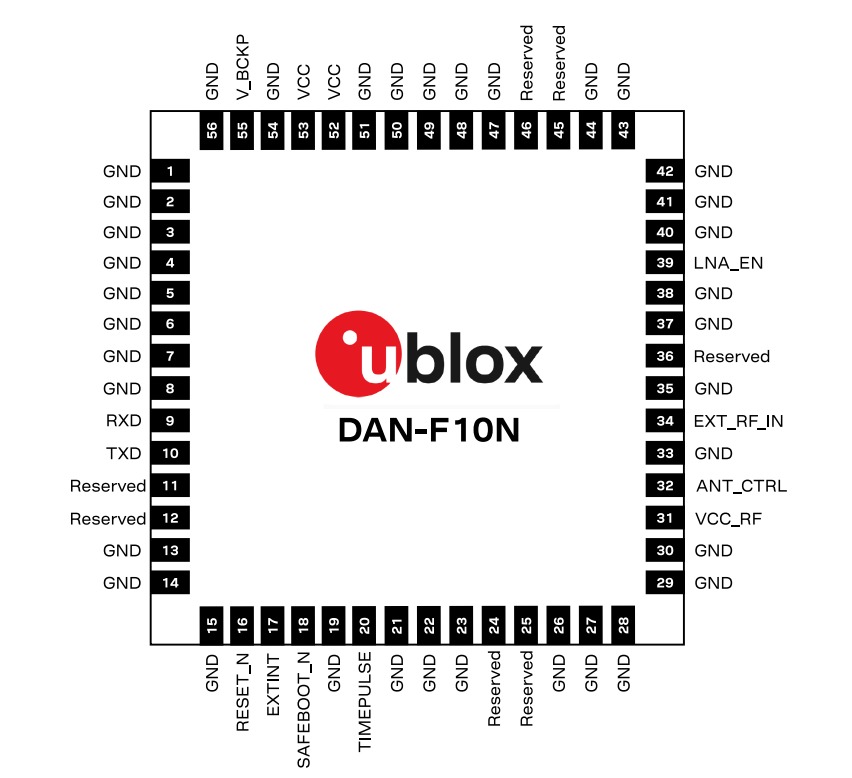

• Interfaces: 1x UART, configurable timepulse, EXTINT input
• Security:
  • RF interference and jamming detection/reporting
  • Spoofing detection/reporting
  • Secure boot for firmware integrity
  • Signed UBX messages (SHA-256)
  • JTAG debug interface (disabled by default)
• Power supply:
  • 2.7V to 3.6V, backup supply (1.65V to 3.6V)
  • Power consumption: 63mW (continuous tracking at 3V)
• Temperature range: -40°C to +85°C (operating and storage)
• Dimensions: 56-pin LCC package (20 x 20 x 11.6 mm, ~18g)
• Environmental qualification: Based on a subset of AEC-Q104
• Compliance: RoHS-3 compliant (2015/863/EU)

The DAN-F10N module is compatible with u-center 2 GNSS software, allowing real-time performance analysis, receiver configuration, and data logging. It also supports AssistNow Online, AssistNow Offline, and AssistNow Autonomous A-GNSS services for faster satellite acquisition. For communication, the module uses NMEA 4.11 and UBX binary protocols, offering raw GNSS data output for advanced applications.

Previously, we covered the u-blox X20 all-band GNSS module, designed to deliver centimeter-level accuracy worldwide. It features a multi-band GNSS receiver and an L-band receiver that supports signals from L1, L2, L5, and the new L6/E6 bands. We also covered other GNSS modules, including the Septentrio mosaicTM and Skytraq PX1122R. You can check those modules as well.

At the time of writing, the company has not provided any pricing information about the DAN-F10N GNSS module. Additional information can be found on the product page and the press release.
