USB-C, DFP, 5V/3A Out, 85-265VAC In, Adapter, Low Cost Reference Design

USB-C, DFP, 5V/3A Out, 85-265VAC In, Adapter, Low Cost Reference Design

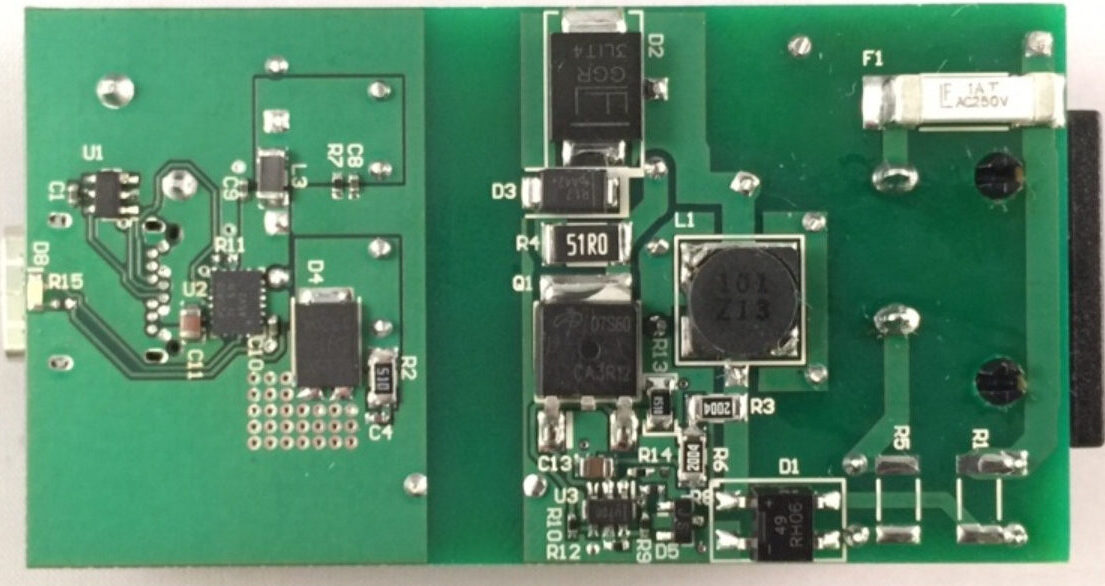

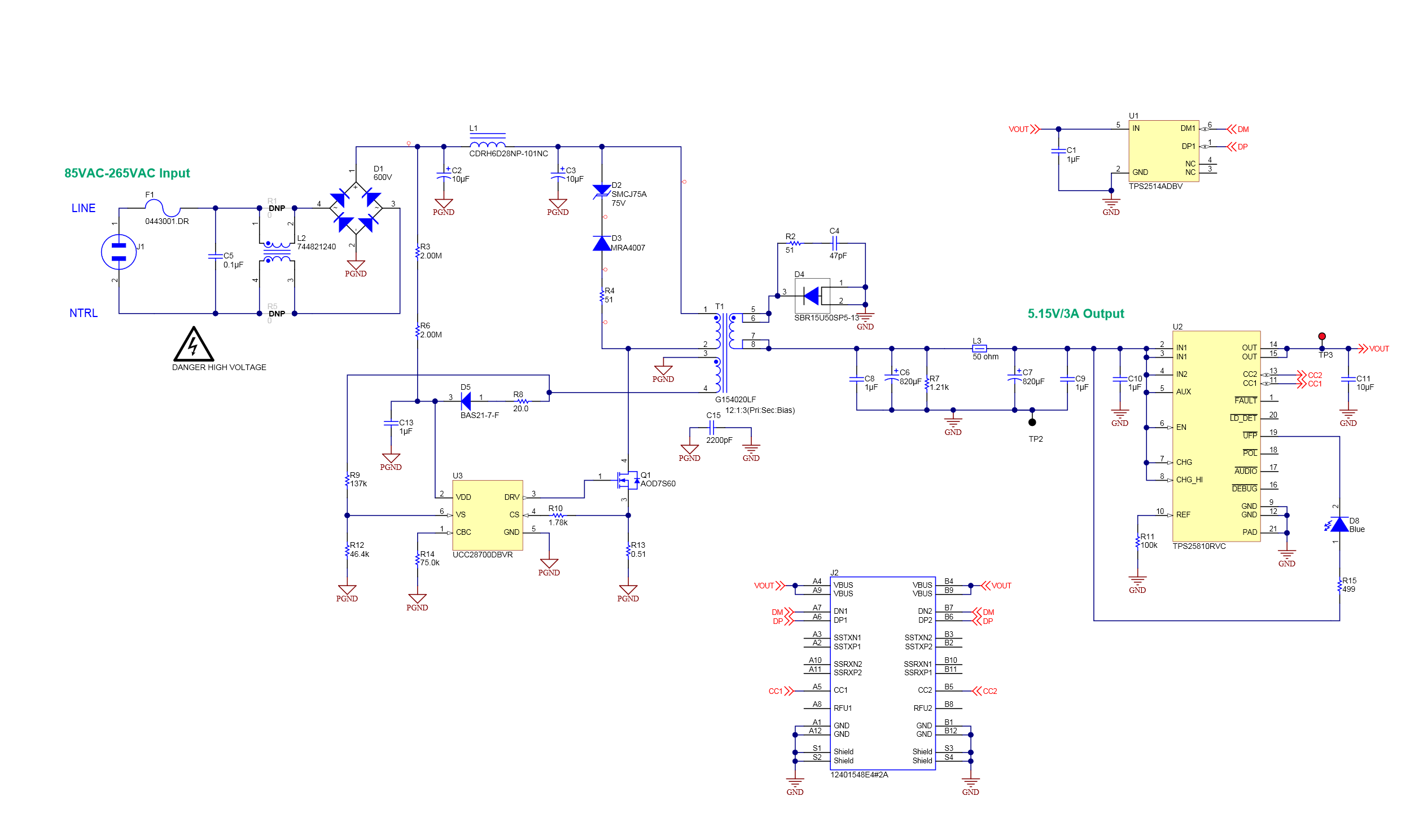

The PMP11124 reference design uses the UCC28700 and TPS25810 to provide an isolated 5V at 3A over a USB type C interface. The UCC28700 implements primary-side regulation, eliminating the need for an opto-coupler and reducing the size and cost of the design. Cost is further minimized by using an output diode instead of a synchronous rectifier.

Features

  • USB type C interface
  • Minimal component count provides low cost solution
  • 3A capability advertisement on CC line
  • Meets class B conducted EMI limits

more information: https://www.ti.com/tool/PMP11124
