Vishay Load Switches with Programmable Current Limits and OVP Enhance Reliability

Four New Vishay eFuse Single-channel Load Switches Integrate Control and Protection Features to Reduce External Components.

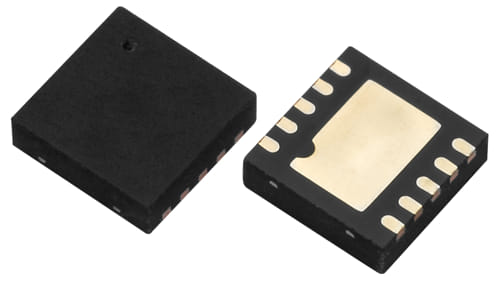

New Yorker Electronics is featuring four newly released Vishay eFuses that feature programmable current limits and overvoltage protection (OVP) in a compact 3mm x 3mm TDFN package. Designed to operate over a wide 2.8V to 23V input voltage range — with a 28 Vin DC tolerance — the 3.5A SiP32433A/B and the 6A SiP32434A/B integrate multiple control and protection features to simplify designs and minimize the need for external components.

While most competing solutions only offer voltages to 18V according to Vishay or are missing their low voltage side, the input voltage range of the Vishay Siliconix single-channel load switches allows them to be used in a wider range of designs. The devices are intended for industrial and medical equipment, robotics, consumer goods, home automation systems, and gaming consoles, where they provide precise control and swift fault responses to enhance the safety and reliability of system designs. Upon switch-off due to latchable faults in these applications, the SiP32433A and SiP32434A are designed to latch the power switch off, while the SiP32433B and SiP32434B will auto-retry after a settable period of time.

Features & Benefits:

• 2.8V to 23V operation voltage
• 28V max. voltage rating with 24V internal OVP
• 33 m typical switch resistance
• 0.5 A to 6 A current limit setting range
• Current limit accuracy of ± 7 %
• Fast short circuit protection response

Applications:

• Industrial Equipment
• Medical Equipment
• Robotics
• Consumer Goods
• Home Automation Systems
• Gaming Consoles

All four devices respond swiftly to short circuits, and their precise overcurrent protection (OCP) is triggered at a set current limit level without an excessive overhead current requirement — an important characteristic for designs in which power busses need to support multiple loads. Competing solutions often require overhead currents of more than 30%. The SiP32433A and SiP32433B with active reverse-blocking target applications featuring USB Type-C and multiple power source switching.
The load switches reduce on-resistance by 43% compared to previous-generation solutions, which translates into a 32% higher current capability or increased efficiency at the same current level. The 78 mW SiP32433A/B has a current limit setting range of 0.3A to 3.5A, while the 33 mW SiP32434A/B offers a range of 0.5A to 6A. Both devices guarantee current limit accuracy down to ± 8%, increase design flexibility, and simplify BOMs. The hot-swappable load switches feature a programmable turn-on slew rate, provide ESD tolerance of 2kV (human body model) and 0.75kV (charged device model), and operate over a temperature range of -40°C to +125°C.

Samples and production quantities of the eFuses are available now. As a franchised distributor, New Yorker Electronics supplies Vishay Siliconix power semiconductor products including low-voltage power MOSFETs (metal-oxide semiconductor field-effect transistors), higher-voltage Vishay Siliconix power MOSFETs, and Power ICs.

Additional Information:

• Single-channel Load eFuse 3.5A SiP32433 Data Sheet
• Single-channel Load eFuse 6A SiP32434 Data Sheet
