Vishay / Sfernice P16 Compact Panel Potentiometers

Vishay / Sfernice P16 Compact Panel Potentiometers

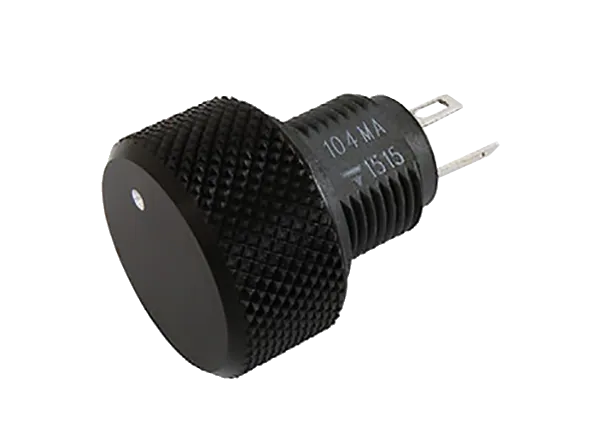

Vishay / Sfernice P16 Compact Panel Potentiometers feature a unique integrated design incorporating the potentiometer and knob in one assembly, with no accessories required. The mounting hardware and terminals are situated on the backside of the panel, reducing the required clearance to a minimum.

The Vishay / Sfernice P16 Compact Panel Potentiometers are fully sealed and have an IP67 ingress rating.

Features

  • All-in-one-design with integrated knob
  • Electrical laws: A: linear, L: logarithmic, F: reverse logarithmic
  • IP67 ingress rating
  • Fully sealed and panel sealed
  • Test according to CECC 41000 or IEC 60393-1
  • High dielectric strength: 2500VRMS
  • 50K cycle lifespan
  • Metallic or plastic knob options

Specifications

  • Resistive element: Cermet
  • Electrical travel: 270° ±10°
  • Resistance range
    • Linear taper: 22Ω to 10MΩ
    • Logarithmic taper: 100Ω to 2.2MΩ
  • Tolerance: ±20%
  • Power rating
    • Linear: 1W @ +40°C
    • Logarithmic: 0.5W @ +40°C
  • Temperature coefficient (typical): ±150ppm/°C
  • Dielectric strength (RMS): 2500V
  • Limiting element voltage (Linear law): 350V
  • Contact resistance variation: 3% Rn or 3Ω
  • End resistance (typical): 1Ω
  • Insulation resistance (500VDC): 106
  • Mechanical travel: 300° ±5°
  • Operating torque: 2Ncm (typical)
  • End stop torque: 25Ncm maximum
  • Tightening torque of mounting nut: 180Ncm maximum
  • Operating temperature range
    • Metallic knob: -40°C to +125°C
    • Plastic knob: -40°C t

more information: https://www.vishay.com/potentiometers/
