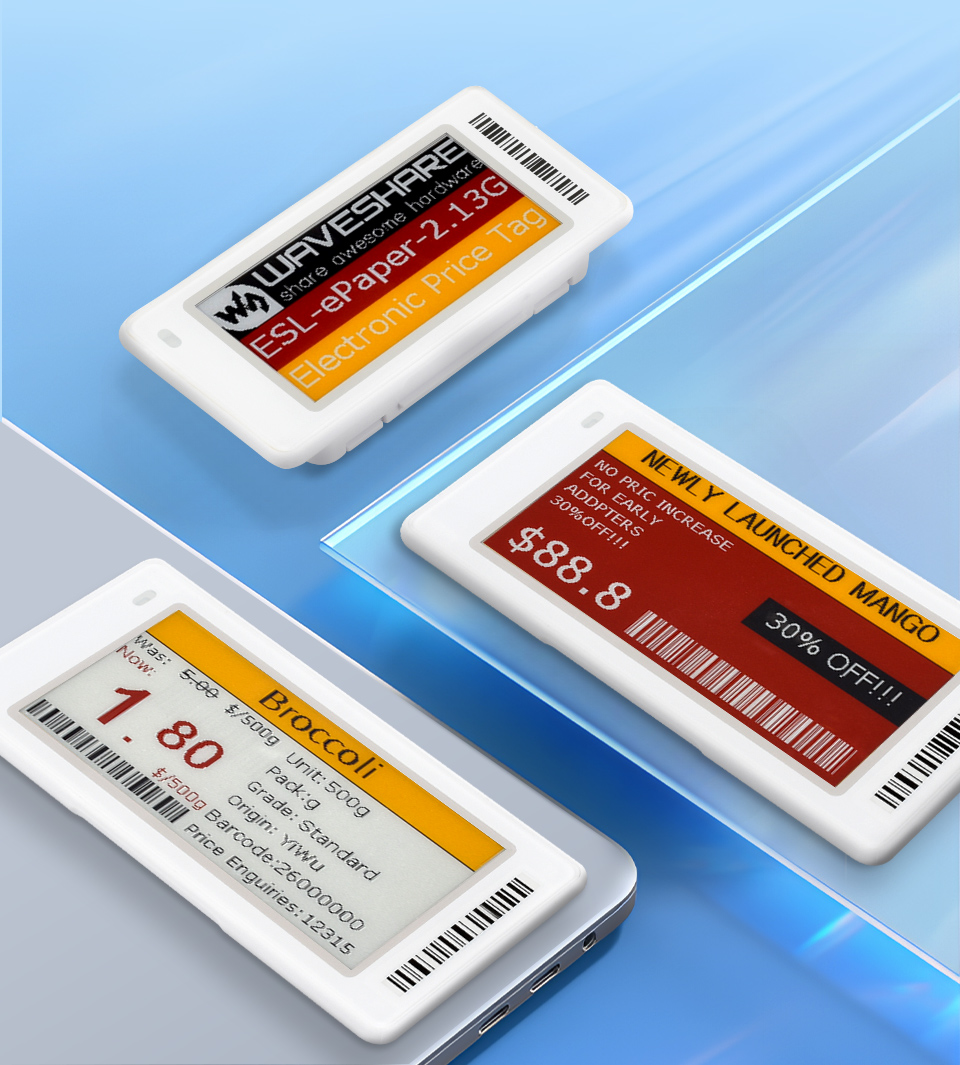

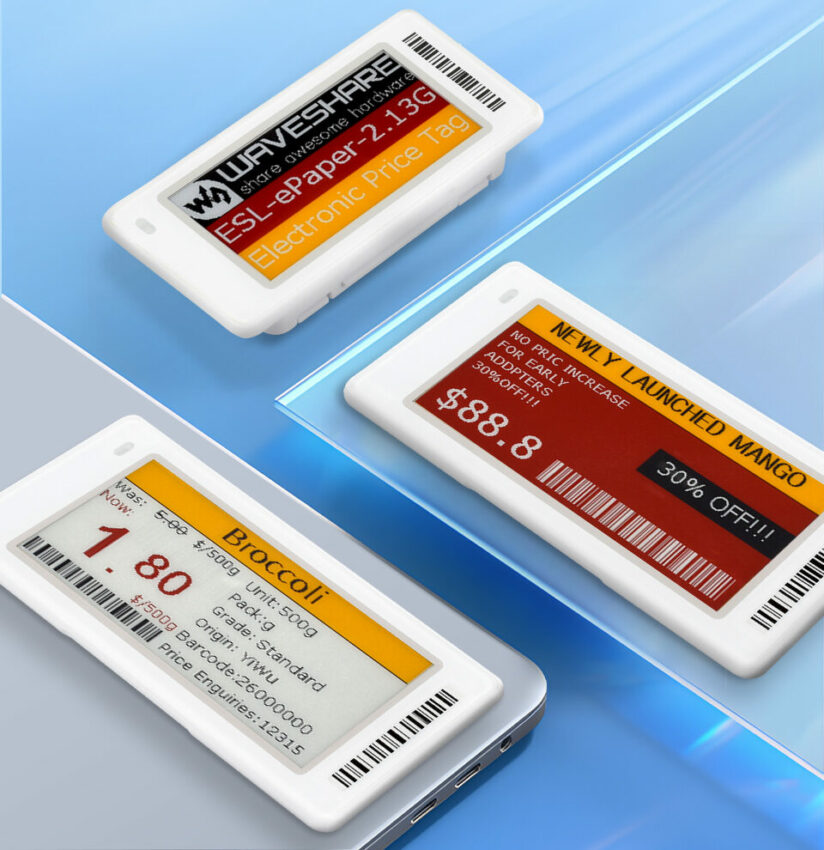

Waveshare ESL Dot Matrix e-Paper Displays with BLE 5.x, NFC & Wi-Fi Featuring Ultra-Low Power Design

Waveshare has introduced a series of dot matrix ESL e-paper displays with 4-color options, which are ideal for IoT, retail, and industrial applications. These Electronic Shelf Labels (ESL) support Bluetooth and NFC connectivity and can be updated wirelessly via a base station, enabling device management through Waveshare’s cloud platform.

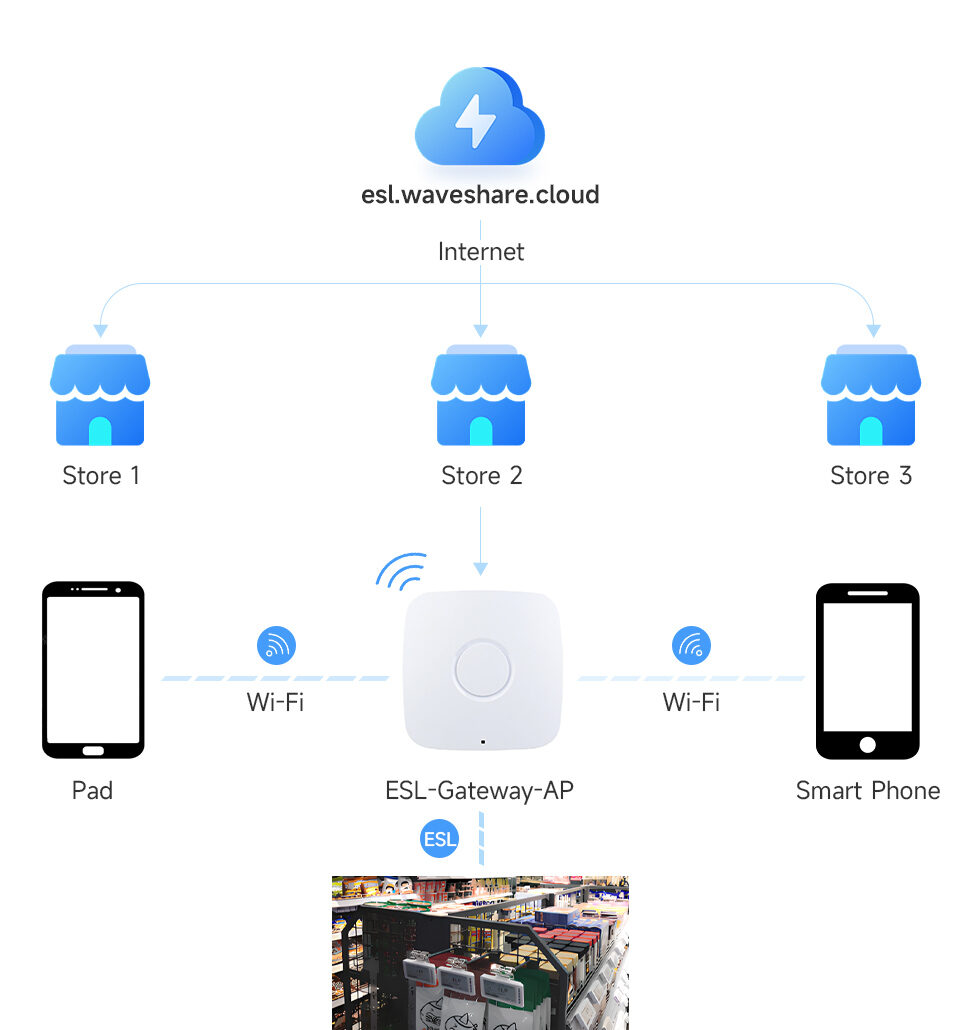

A key advantage of ESL displays is their lightweight, cloud-based management, eliminating the need for in-store servers. By integrating the ESL communication protocol, Wi-Fi, and cloud computing, they provide a flexible, enterprise-class solution. Additionally, intelligent algorithm roaming and balancing technology ensure seamless online and offline integration.

Waveshare ESL 4-color e-Paper displays Specifications:

• Display technology: E-Paper (Electrophoretic) Display with no backlight
• Display Color: Red, Yellow, Black, White
• Display Size: 2.13″, 2.66″, 2.9″, 3.5″ (Dot Matrix)
• Resolution / Pixel Density [DPI] / Active Display Area:
  • 2.13″: 250 × 122 pixels / 130 DPI / 48.55 × 23.7mm
  • 2.66″: 296 × 152 pixels / 125 DPI / 60.09 × 30.7mm
  • 2.9″: 296 × 128 pixels / 112 DPI / 66.9 × 29.06mm
  • 3.5″: 384 × 184 pixels / 122 DPI / 79.68 × 38.18mm
• Wireless Connectivity
  • BLE 5.1 [2.13″, 2.66″, 3.5″] and BLE 5.0 [2.9″]
  • NFC near-field communication technology to achieve online and offline integration
  • NFC Open range can be up to 25-30m (radius)
  • Wi-Fi dual-band, supporting 2.4G and 5G
• Power:
  • Ultra-low power, only required for content refreshing
  • Extremely low power consumption, with a lifespan of ≥ 10 years
  • Built-in replaceable 1200mAh battery
  • Up to 5 years of battery life
• Outline Dimensions:
  • 2.13″: 71 mm x 34.7 mm
  • 2.66″: 85 mm x 41 mm
  • 2.9″: 92 mm x 41.5 mm
  • 3.5″: 101.5 mm x 50 mm
• Operating Temperature: 0°C to 40°C

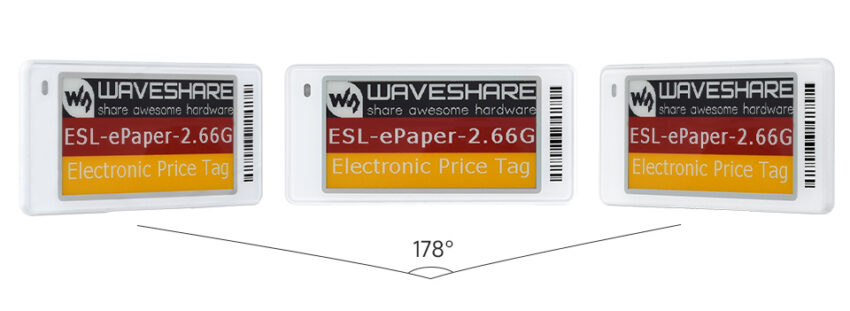

The ESL series offers four e-paper display sizes: 2.13-inch, 2.66-inch, 2.9-inch, and 3.5-inch, all supporting Red, Yellow, Black, and White colors. Housed in a durable ABS plastic case, these displays feature a user-replaceable 1200 mAh coin cell battery, lasting up to five years. With a wide 178-degree viewing angle, they are ideal for price tags, shelf labels, asset tracking, and conference name tags.

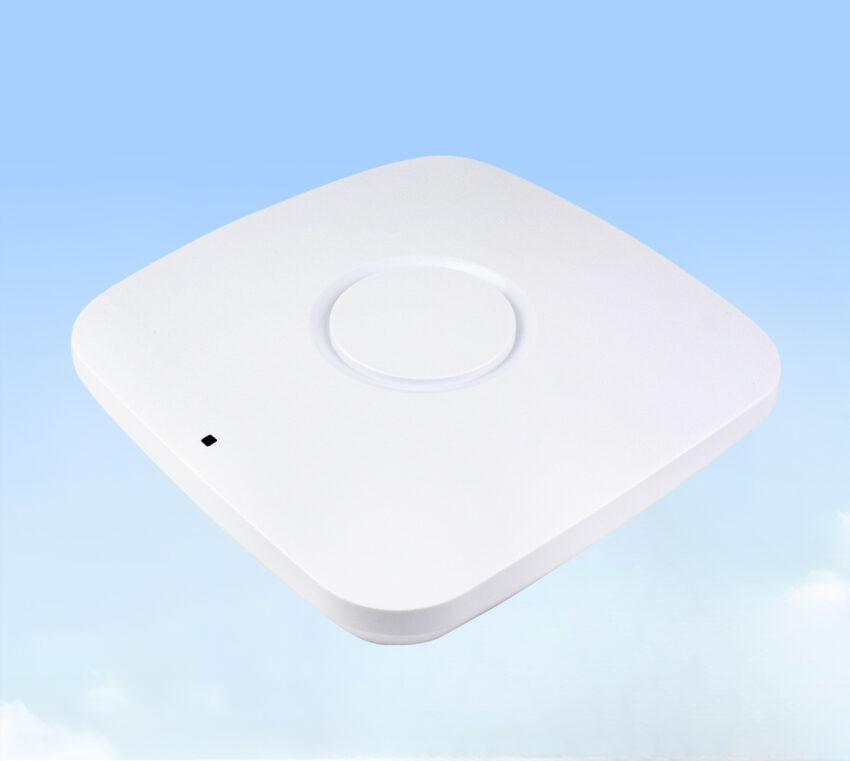

The wireless BLE Base Station enables seamless image refreshing for the ESL e-Paper series. The ESL-Gateway-AP Base Station is required for updating the displays. The AP Management system monitors the base station’s status in the store and provides detailed parameter information.

We’ve previously covered several e-paper displays, including the Pine64 PineNote, Waveshare 4-inch E-Ink Spectra 6, LILYGO T3S3, INKPLATE 6 MOTION, LILYGO Mini E-Paper, Inkplate 5, and LILYGO T5 4.7-inch E-Paper. Feel free to check them out if you’re interested.

The ESL dot matrix e-Paper displays are available from Amazon and priced at $467.99 as part of a full kit with the gateway, four displays, a power supply, and mounting brackets. AliExpress is offering the same for a slightly lower $459.99. Users can also buy standalone displays from Amazon and the official Waveshare store. More information about the product setup process and other documentation can be found on Waveshare’s wiki page.
